     Original Farmall Hundred Series 1954-1958
    Original Farmall Hundred Series 1954-1958

    International Harvester 606

    International Harvester 606 tractor photo  I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual
    1962 - 1967
    Utility tractor
    Next model:International Harvester 656
    Smaller:International Harvester 504






    Production:

    Manufacturer:International Harvester
    Total built:7,348
    Original price (USD):$4,900 (1967)


    International Harvester 606 Engines:

       International Harvester 3.6L 6-cyl gasoline
       International Harvester 3.9L 6-cyl diesel
       International Harvester 0.1L 6-cyl LP gas
    full engine details ...


    Capacity:

    Fuel:22.7 gal [85.9 L] (gasoline/diesel)
     26.6 gal [100.7 L] (LP gas)


    3-Point Hitch:

    Rear Type:1/2


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:78 inches [198 cm]
    Weight:5215 to 8908 pounds
    Front tire:6.00-16
    Rear tire:14.9-28
    full dimensions and tires ...


    606 Serial Numbers:

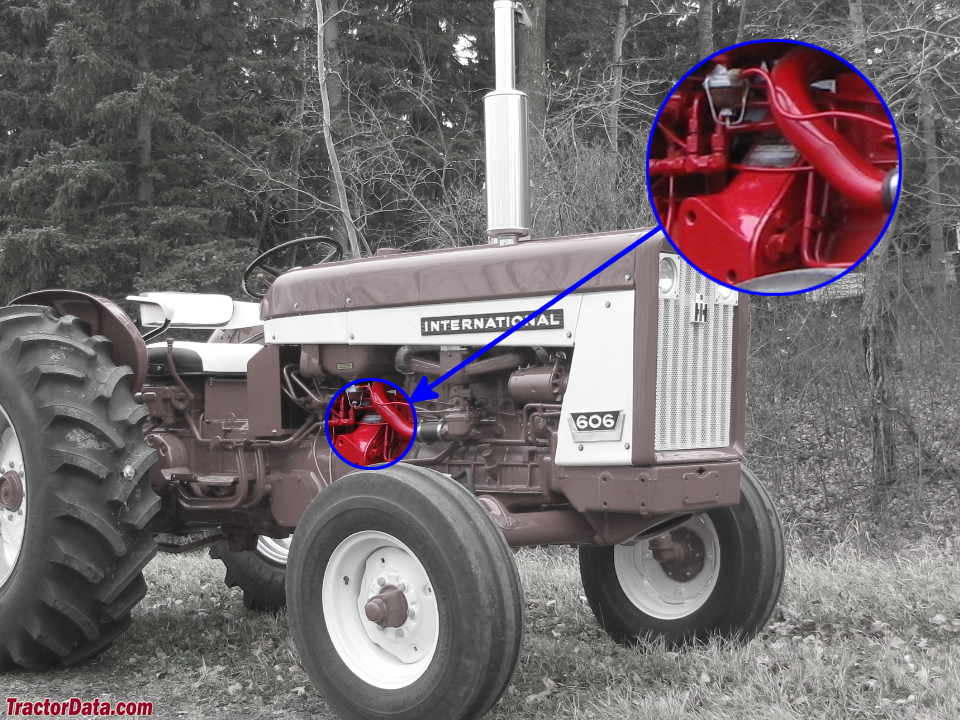

    Location:Clutch housing, on left side of tractor.
    1962: 501
    1963: 1702
    1964: 3214
    1965: 5041
    1966: 6960
    1967: 7922

    how to read serial numbers...



    International Harvester 606 Power:

    Drawbar (claimed):45 hp [33.6 kW]
    PTO (claimed):50 hp [37.3 kW]
    Drawbar (tested):46.71 hp [34.8 kW]
    PTO (tested):54.31 hp [40.5 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Brakes:independent mechanical disc


    Hydraulics:

    Valves:0 to 2
    Total flow:12 gpm [45.4 lpm]
     17 gpm [64.3 lpm] (optional


    Belt Pulley:

    Diameter:11 inches [27 cm]
    RPMs:1062
    Speed:3057 ft/min [931.77 meters/min]


    Battery:
