International Harvester 584
| | 1977 - 1984 |
| 84 Series | | Utility tractor |
|
Series map:
484
584
Hydro 84
50.0hp
60.0hp
65.2hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | International Harvester
|
| Utility tractor |
| Built in Doncaster, England |
| Original price was $18,850 in 1984 |
| International Harvester 584 Power |
| Engine | 60 hp
44.7 kW
|
| Drawbar (claimed) | 47.4 hp
35.3 kW
|
| PTO (claimed) | 52.5 hp
39.1 kW
|
| Drawbar (tested) | 46.73 hp
34.8 kW
|
| PTO (tested) | 52.54 hp
39.2 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Independent hydraulic wet disc brakes |
| ROPS canopy or cab optional. |
| Capacity |
| Fuel | 20 gal
75.7 L
|
| Hydraulic system | 9 gal
34.1 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9 gal
34.1 L
|
| Valves | 1 or 2
|
| Total flow | 16.1 gpm
60.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift | 3600 lbs
1632 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540
|
| Dimensions & Tires |
| Utility Wheelbase | 84.5 inches
214 cm
|
| Row-crop Wheelbase | 84.5 inches
214 cm
|
| 4WD Wheelbase | 85.2 inches
216 cm
|
| Low-profile Wheelbase | 83.75 inches
212 cm
|
| Weight | 5580 to 6685 pounds
|
| Front tire | 7.50-16
|
| Rear tire | 16.9-30
|
 Full dimensions and tires ... |

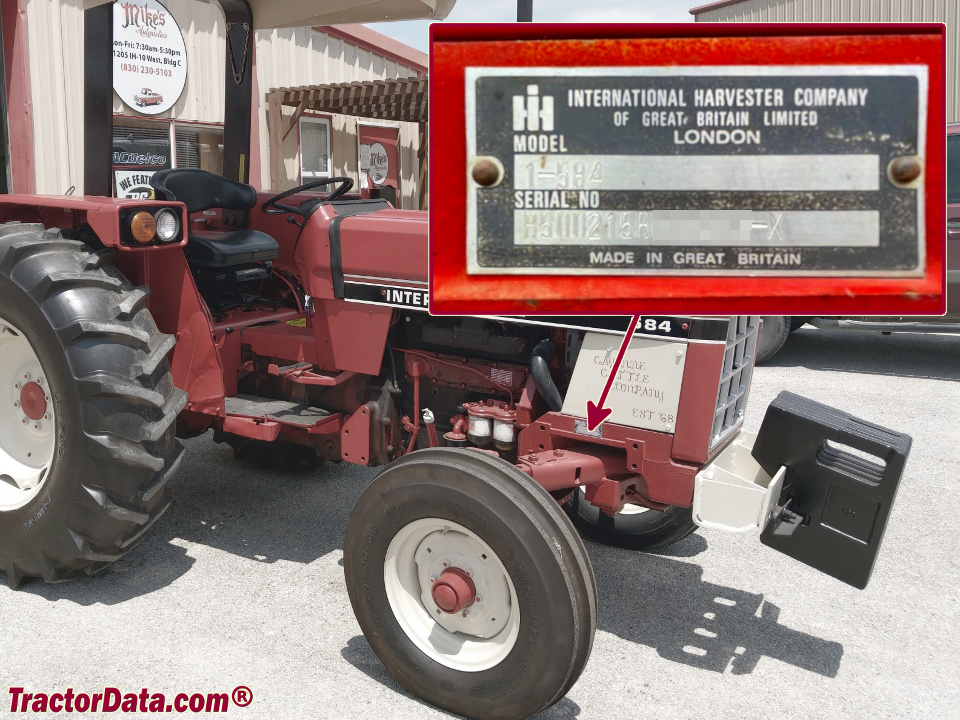

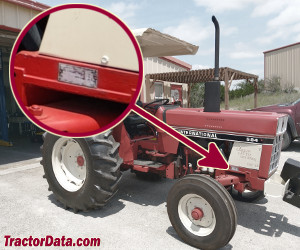

| 584 Serial Number Location |
 |
| Front axle support on right side of tractor. |
| Electrical |
| Ground | negative
|
| Charging amps | 45
|
| Battery volts | 12
|
| References |
 |
| 1985 Farm Equipment Buyer's Guide published by CaseIH |
| 1979 Buyer's Guide published by International Harvester |
| Buyer's Guide 1981 published by International Harvester |
| Buyer's Guide 1982 published by International Harvester |
| 84 Series Hi-Performers published in 1978, by International Harvester |
| International Series 84 Utility/Row-Crop Tractors published in 1978, by International Harvester |
| International Series 84 tractors published in 1982, by International Harvester |
| International Series 84 Tractors published in 1983, by International Harvester |
| Agricultural Equipment Reference Catalog published in 1980, by International Harvester |
