    International Harvester 560 - transmission

    No photo available I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual
    Production years:1958 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 560 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:64 qts [60.6 L]

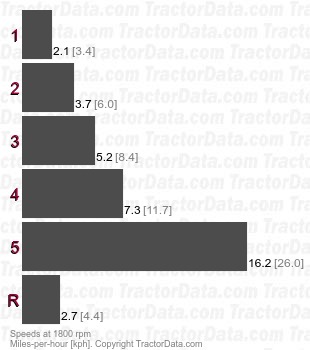

    Speeds:With 16.9/14-30 rear tires.

    Gear1800 rpm
    12.11mph [3.4kph]
    23.73mph [6.0kph]
    35.23mph [8.4kph]
    47.27mph [11.7kph]
    516.19mph [26.0kph]
    R2.74mph [4.4kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:64 qts [60.6 L]
    Comments:The Torque Amplifier (TA) provides a clutchless powershift between direct drive (DD) and the lower TA speed.

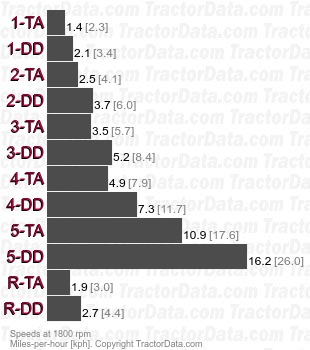

    Speeds:With 16.9/14-30 rear tires.

    Gear1800 rpm
    1-TA1.42mph [2.3kph]
    1-DD2.11mph [3.4kph]
    2-TA2.52mph [4.1kph]
    2-DD3.73mph [6.0kph]
    3-TA3.53mph [5.7kph]
    3-DD5.23mph [8.4kph]
    4-TA4.90mph [7.9kph]
    4-DD7.27mph [11.7kph]
    5-TA10.93mph [17.6kph]
    5-DD16.19mph [26.0kph]
    R-TA1.85mph [3.0kph]
    R-DD2.74mph [4.4kph]
