Tractors > International Harvester > 560
      -Brand search:


    International Harvester 560 - tests

    No photo available
     I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual for the
    International Harvester 560
    Production years:1958 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 560 specifications...

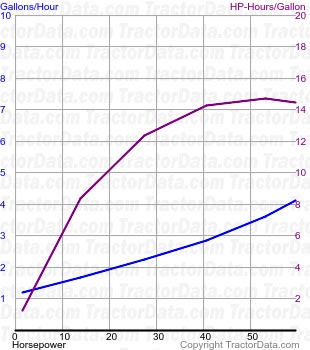

    Nebraska Tractor Test 669:

    Test Date:September 18 - 25, 1958
    Engine:diesel
    PTO power (rated engine speed):59.48 hp [44.4 kW]
    PTO fuel use (engine speed):4.1 gal/hour [15.5 l/hour]
    Drawbar power (max):44.38 hp [33.1 kW]
    Drawbar fuel use (max):3.3 gal/hour [12.5 l/hour]

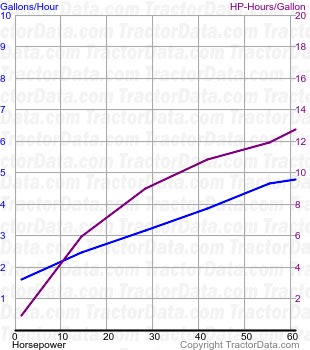

    Nebraska Tractor Test 671:

    Test Date:September 24 - October 6, 1958
    Engine:gasoline
    PTO power (rated engine speed):61.04 hp [45.5 kW]
    PTO fuel use (engine speed):4.8 gal/hour [18.2 l/hour]
    Drawbar power (max):44.83 hp [33.4 kW]
    Drawbar fuel use (max):4.2 gal/hour [15.9 l/hour]

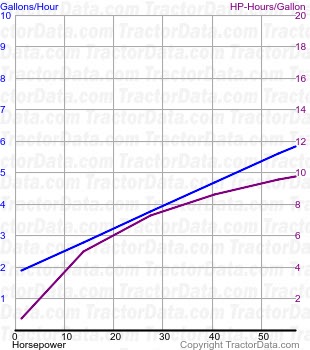

    Nebraska Tractor Test 675:

    Test Date:October 8 - 20, 1958
    Engine:LP gas
    PTO power (rated engine speed):57.06 hp [42.5 kW]
    PTO fuel use (engine speed):5.9 gal/hour [22.3 l/hour]
    Drawbar power (max):43.96 hp [32.8 kW]
    Drawbar fuel use (max):5.1 gal/hour [19.3 l/hour]
