    International Harvester 484 - transmission

    International Harvester 484 tractor photo
    I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual for the
    International Harvester 484
    Production years:1977 - 1984
    Next model:International Harvester 483
    Tractor type:Farm/Agricultural tractor
    Larger:International Harvester 584
    Smaller:International Harvester 384
    more International Harvester 484 specifications...






    Transmission:

    Transmission:syncromesh
    Forward:8
    Reverse:4
    Oil capacity:36 qts [34.1 L]
    Comments:Four gears each in high, low, and reverse ranges.

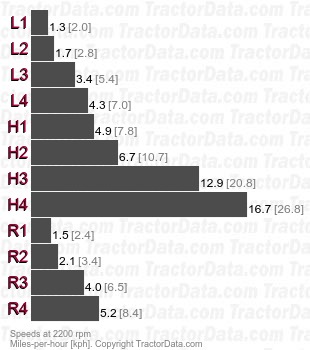

    Speeds:With 13.6-28 rear tires.

    Gear2200 rpm
    L11.27mph [2.0kph]
    L21.74mph [2.8kph]
    L33.38mph [5.4kph]
    L44.35mph [7.0kph]
    H14.86mph [7.8kph]
    H26.68mph [10.7kph]
    H312.95mph [20.8kph]
    H416.66mph [26.8kph]
    R11.52mph [2.4kph]
    R22.09mph [3.4kph]
    R34.05mph [6.5kph]
    R45.22mph [8.4kph]
