    International Harvester B-414 - transmission

    International Harvester B-414 tractor photo I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual
    Production years:1961 - 1966
    Next model:International Harvester B-275
    Tractor type:Farm/Agricultural tractor
    more International Harvester B-414 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:8
    Reverse:2
    Oil capacity:20 qts [18.9 L]
    Comments:Four forward gears plus reverse with high and low ranges.

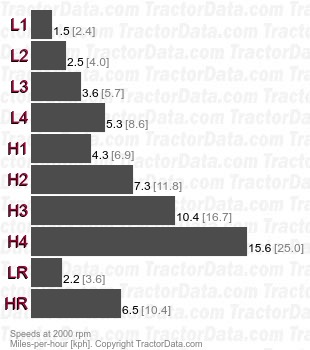

    Speeds:With 13.6-28 rear tires.

    Gear2000 rpm
    L11.47mph [2.4kph]
    L22.51mph [4.0kph]
    L33.57mph [5.7kph]
    L45.34mph [8.6kph]
    H14.28mph [6.9kph]
    H27.31mph [11.8kph]
    H310.41mph [16.7kph]
    H415.56mph [25.0kph]
    LR2.23mph [3.6kph]
    HR6.49mph [10.4kph]



    Transmission:

    Transmission:Reverser
    Forward:8
    Reverse:8
    Oil capacity:20 qts [18.9 L]
    Comments:Four gears with high and low ranges plus reverser.

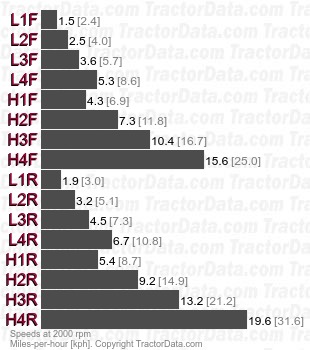

    Speeds:With 13.6-28 rear tires.

    Gear2000 rpm
    L1F1.47mph [2.4kph]
    L2F2.51mph [4.0kph]
    L3F3.57mph [5.7kph]
    L4F5.34mph [8.6kph]
    H1F4.28mph [6.9kph]
    H2F7.31mph [11.8kph]
    H3F10.41mph [16.7kph]
    H4F15.56mph [25.0kph]
    L1R1.86mph [3.0kph]
    L2R3.17mph [5.1kph]
    L3R4.51mph [7.3kph]
    L4R6.74mph [10.8kph]
    H1R5.41mph [8.7kph]
    H2R9.23mph [14.9kph]
    H3R13.15mph [21.2kph]
    H4R19.65mph [31.6kph]
