International Harvester B-414 Tests


International Harvester B-414 tractor photo
1961 - 1966
Utility tractor
Series:B-275B-414
Nebraska Tractor Test 817

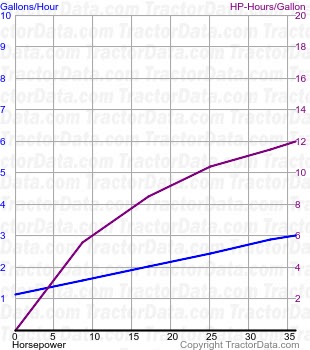

B-414 fuel use from test 817
Nebraska Tractor Test 817
Gasoline 8-speed 2WD
May 3 - 18, 1962
Link: Nebraska Tractor Test 817 file
PTO performance
Power at rated engine speed:36.46 hp
27.2 kW
Fuel use:3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power:30.86 hp
23.0 kW
Fuel use:3.0 gal/hour
11.4 l/hour
Gear 4L used for power test.
Max pull:4984 lbs
2260 kg
Gear 2L used for pull test.
Nebraska Tractor Test 827

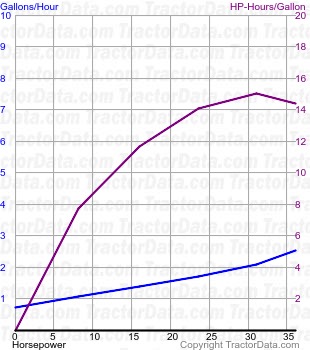

B-414 fuel use from test 827
Nebraska Tractor Test 827
Diesel 8-speed 2WD
September 27 - October 12, 1962
Link: Nebraska Tractor Test 827 file
PTO performance
Power at rated engine speed:35.99 hp
26.8 kW
Fuel use:2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power:31.73 hp
23.7 kW
Fuel use:2.6 gal/hour
9.8 l/hour
Gear 4L used for power test.
Max pull:5089 lbs
2308 kg
Gear 2L used for pull test.
