    International Harvester 354

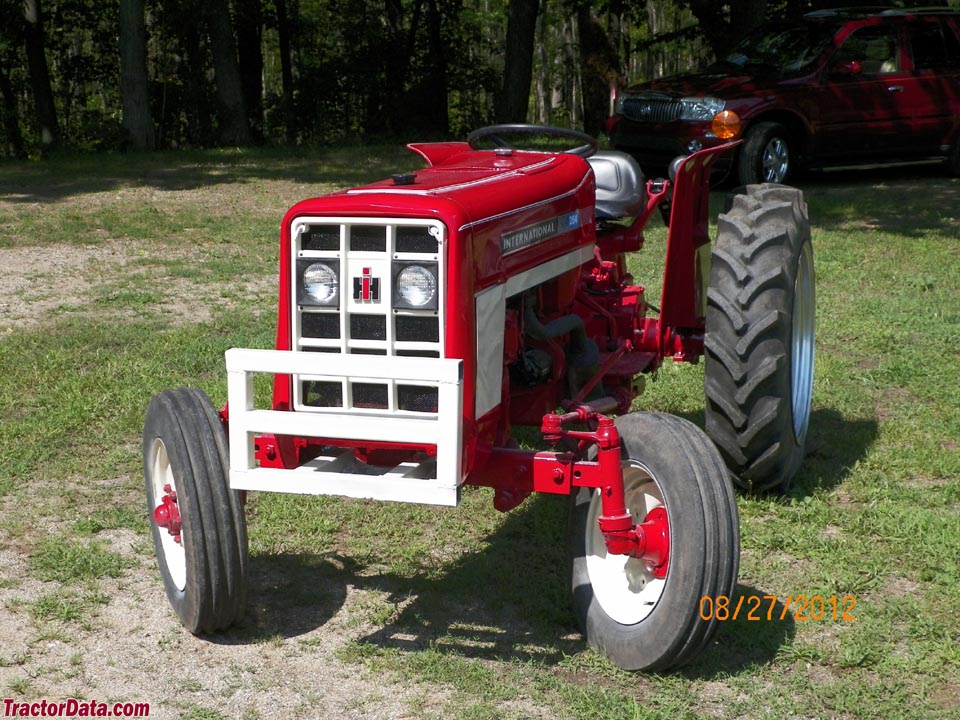

    International Harvester 354 tractor photo
     I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual for the
    International Harvester 354
    Production years:1971 - 1975
    Tractor type:Farm/Agricultural tractor






    Production:

    Manufacturer:International Harvester
    Factory:Doncaster, England
    Total built:-unknown-
    Original price:$4,200 (1975)


    International Harvester 354 Engine:

       International Harvester 4-cyl gasoline
       International Harvester 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:12.2 gal [46.2 L]
    Hydraulic system:3 gal [11.4 L]


    3-Point Hitch:

    Rear Type:I
    Rear lift:2,602 lbs [1180 kg]


    Power Take-off (PTO):

    Rear PTO:continuous
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:76.5 inches [194 cm]
    Weight:4040 to 5925 pounds
    Front tire:5.50-16
    Rear tire:12.4-28
    full dimensions and tires ...

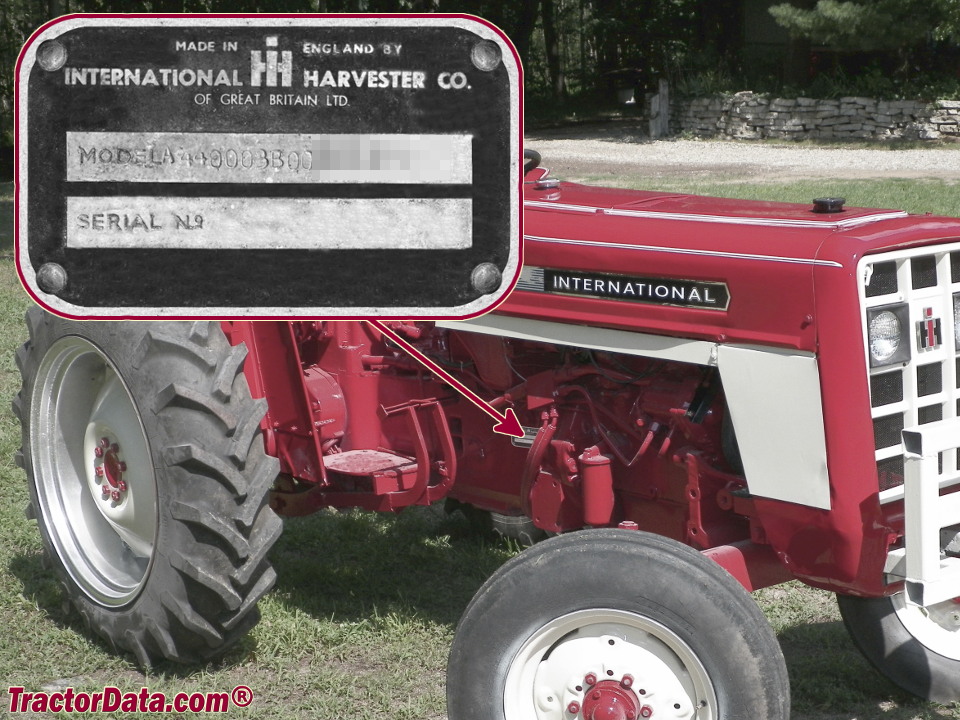

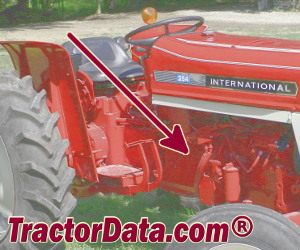

    354 Serial Numbers:


    - Serial numbers unknown -



    International Harvester 354 Power:

    Engine:35 hp [26.1 kW]
    Drawbar (claimed):28 hp [20.9 kW]
    PTO (claimed):32 hp [23.9 kW]
    Drawbar (tested):27.73 hp [20.7 kW]
    PTO (tested):32.58 hp [24.3 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:-unknown-
    Brakes:disc


    Hydraulics:

    Type:-unknown-
    Capacity:3 gal [11.4 L]
    Pressure:-unknown-
    Valves:0 to 2
    Total flow:6 gpm [22.7 lpm]
    Valve flow:-unknown-


    Electrical:

    Ground:-unknown-
