International Harvester 354 Tests
|
|
| Tractor Tests | |
| NTTL 733: diesel 8-speed 2WD | |
| NTTL 1115: gasoline 8-speed 2WD |
| Nebraska Tractor Test 733 | |||
| |||
| Nebraska Tractor Test 733 | |
| Diesel 8-speed 2WD March 3 - 23, 1960 Link: Nebraska Tractor Test 733 file | |
| PTO performance | |
| Power at rated engine speed | 32.88 hp 24.5 kW |

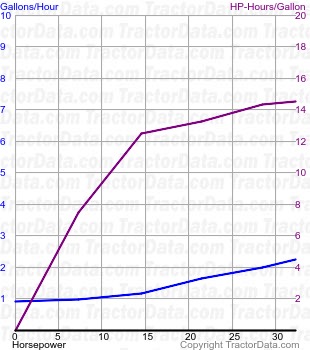

| Fuel use | 2.3 gal/hour 8.7 l/hour |
| Power at rated PTO speed | 32.23 hp 24.0 kW |
| Fuel use | 2.2 gal/hour 8.3 l/hour |
| Drawbar performance | |
| Max power | 30.23 hp 22.5 kW |
| Fuel use | 2.5 gal/hour 9.5 l/hour |
| Gear 4L used for power test. | |
| Max pull | 4641 lbs 2105 kg |
| Gear 2L used for pull test. | |
| Nebraska Tractor Test 1115 | |||
| |||
| Nebraska Tractor Test 1115 | |
| Gasoline 8-speed 2WD November 1 - 22, 1972 Link: Nebraska Tractor Test 1115 file | |
| PTO performance | |
| Power at rated engine speed | 32.58 hp 24.3 kW |

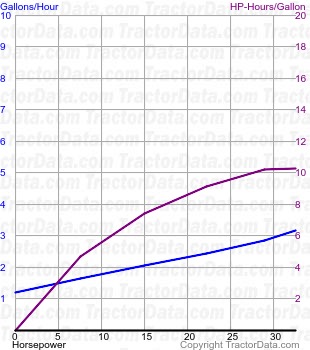

| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Power at rated PTO speed | 32.22 hp 24.0 kW |
| Fuel use | 3.1 gal/hour 11.7 l/hour |
| Drawbar performance | |
| Max power | 27.73 hp 20.7 kW |
| Fuel use | 3.1 gal/hour 11.7 l/hour |
| Gear 4L used for power test. | |
| Max pull | 4,674 lbs 2120 kg |
| Gear 1L used for pull test. | |
