    International Harvester 354 - transmission

    International Harvester 354 tractor photo
    I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual for the
    International Harvester 354
    Production years:1971 - 1975
    Tractor type:Farm/Agricultural tractor
    more International Harvester 354 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:8
    Reverse:2
    Oil capacity:6.25 qts [5.9 L]

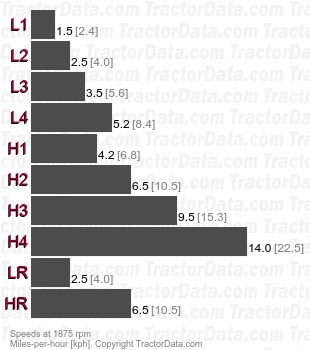

    Speeds:With 12.4-28 rear tires.

    Gear1875 rpm
    L11.5mph [2.4kph]
    L22.5mph [4.0kph]
    L33.5mph [5.6kph]
    L45.25mph [8.4kph]
    H12.25mph [3.6kph]
    H24.25mph [6.8kph]
    H36.5mph [10.5kph]
    H49.5mph [15.3kph]
    LR14mph [22.5kph]
    HR6.25mph [10.1kph]
