International Harvester Hydro 186 - transmission

International Harvester Hydro 186 tractor photo
1976 - 1981   86 Series
Row-Crop tractor
Previous model:International Harvester Hydro 100
Next model:International Harvester 3488
Series next:International Harvester 1086
Series back:International Harvester 986
more International Harvester Hydro 186 specifications...






Transmission:

Transmission:hydrostatic
Gears:variable, two-range forward and reverse
Oil capacity:114 qts [107.9 L]
Oil type:
IH Hy-Tran/B-6

A range lever on the right console allows the selection of high, low, or reverse range. Speed is controlled by the speed-control lever on the left side of the instrument panel. An inching pedal is located on the left side of the tractor, and allows for small movements when connecting implements.
Speeds:18.4-34 rear tires.

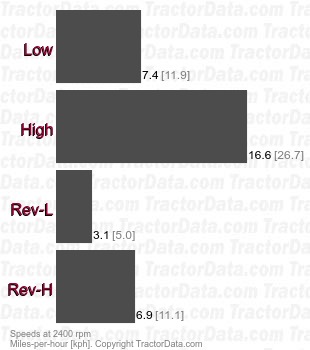

Hydro 186 hydrostatic  speeds
