International Harvester Cub 185 Lo-Boy Transmission

International Harvester Cub 185 Lo-Boy tractor photo
1974 - 1976
Compact Utility tractor
154 Lo-Boy
Series:Cub 185 Lo-Boy
184 Lo-Boy
Transmissions overview
3-speed unsynchronized gear
6-speed creeper
Type:unsynchronized gear
Gears:3 forward and 1 reverse
Clutch:mechanical dry disc
Oil capacity:7 qts
6.6 L

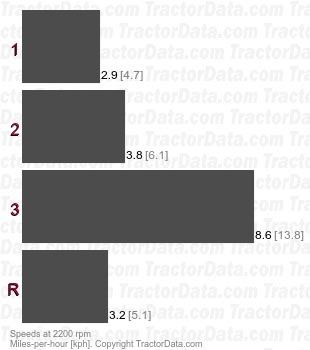

Cub 185 Lo-Boy  unsynchronized gear speeds
International Harvester Cub 185 Lo-Boy  transmission photo
Gears:6 forward and 2 reverse
Optional creeper range for the standard transmission.
Page information
Last update:April 2, 2021
