| | 1977 - 1980 |
| Compact Utility tractor |
|
Series map:
184 Lo-Boy
18.0hp
| Transmissions overview |
| 3-speed unsynchronized gear |
| 6-speed creeper |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 3 forward and 1 reverse
|
| Clutch | mechanical dry disc
|
| Oil capacity | 7 qts
6.6 L
|

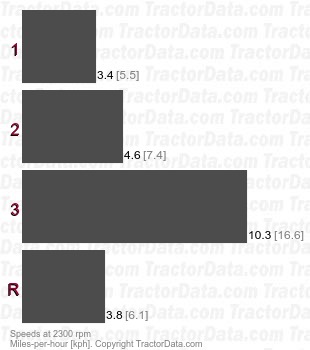

| Speeds |
|

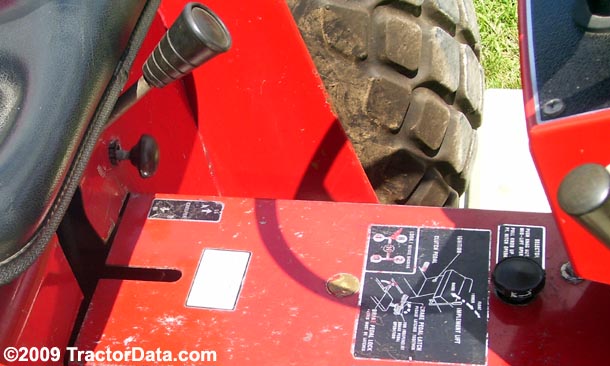

| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 6 forward and 2 reverse
|
| Optional creeper range for the standard transmission. |
