Farmall F-20
| | 1932 - 1939 |
| Row-Crop tractor |
|
Series map:
F-12
F-20
F-30
14.4hp*
29.6hp*
33.3hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| Row-Crop tractor |
| Built in Rock Island, Illinois, USA |
| Total built | 154,398
|
| Original price was $1000 in 1936 |
| The Farmall F-20 was originally advertised as the "Increased-Power Farmall", and was similar to the orginal Farmall. The tractor paint scheme changed from gray to red on November 1, 1936 (the beginning of the 1937 production year). A number of F-20s were built in early 1934 using the Farmall Regular rear end and F-20 engine. These tractors are identified by a TA serial number prefix. |
| Farmall F-20 Power |
| Drawbar (claimed) | 19.6 hp
14.6 kW
|
| PTO (claimed) | 26.67 hp
19.9 kW
|
| Plows | 2
|
| Drawbar (tested) | 20.66 hp
15.4 kW
|
| Belt (tested) | 28.0 hp
20.9 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical band brakes |
| Open operator station. |
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540 (1.125)
|
| Engine RPM | 505@1200
|
| F-20 Serial Number Location |
 |

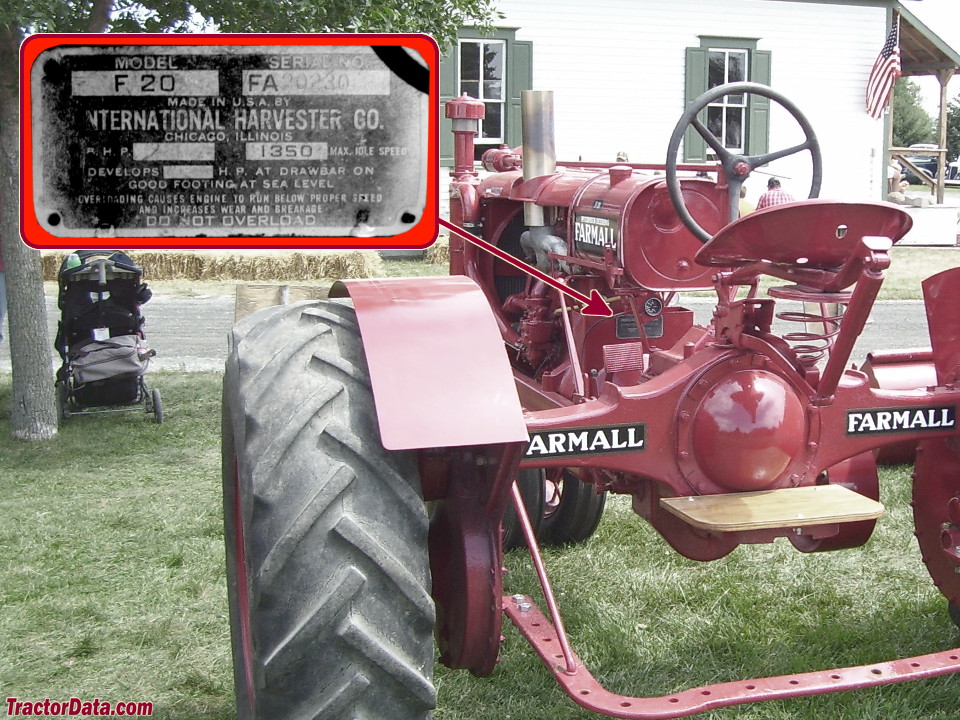

| Serial number plate under the fuel tank of the Farmall F-20. |
| F-20 Serial Numbers |
| 1932 | FA-501
|
| 1933 | ------
|
| 1934 | FA-3001
|
| 1935 | FA-9760
|
| 1936 | FA-41123
|
| 1937 | FA-72982
|
| 1938 | FA-112201
|
| 1939 | FA-136042
|
| Final | FA-148810
|
| 1934 | TA-135000 (old style countershaft)
|
FAQ: How to read a serial number table.
|
| Belt Pulley |
| Diameter | 14 inches
35 cm
|
| Width | 6.5 inches
16 cm
|
| RPM | 654
|
| Speed | 2395 ft/min
730.00 meters/min
|
| References |
 |
| Farmall Tractor Model F-20 (MC-D 3075) published in 1932 |
| International Tractors - The Line That Offers You A Choice published in 1933, by International Harvester |
| McCormick-Deering Tractors - Modern Agricultural Power published in 1933, by International Harvester |
