Tractors > Farmall > F-20

Farmall F-20 Tests



Farmall F-20 tractor photo
1932 - 1939
Row-Crop tractor
Series map:
F-12
F-20
F-30
14.4hp*
29.6hp*
33.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 221: kerosene 4-speed 2WD
NTTL 264: kerosene 4-speed 2WD
NTTL 276: kerosene 4-speed 2WD
Nebraska Tractor Test 221

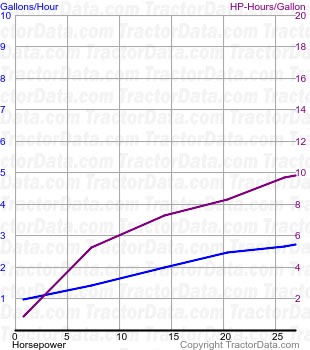

F-20 fuel use from test 221
Nebraska Tractor Test 221
Kerosene 4-speed 2WD
April 3 - 16, 1934
Link: Nebraska Tractor Test 221 file
Belt power (max)23.11 hp
17.2 kW
Belt fuel use (max)2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power15.39 hp
11.5 kW
Gear 2 used for power test.
Max pull2334 lbs
1058 kg
Gear 1 used for pull test.
Nebraska Tractor Test 264

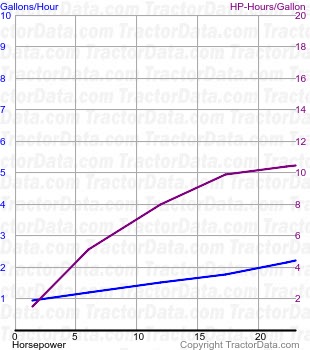

F-20 fuel use from test 264
Nebraska Tractor Test 264
Kerosene 4-speed 2WD
July 20 - 29, 1936
Link: Nebraska Tractor Test 264 file
Belt power (max)28.0 hp
20.9 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power20.5 hp
15.3 kW
Gear 3 used for power test.
Max pull2799 lbs
1269 kg
Gear 1 used for pull test.
Nebraska Tractor Test 276

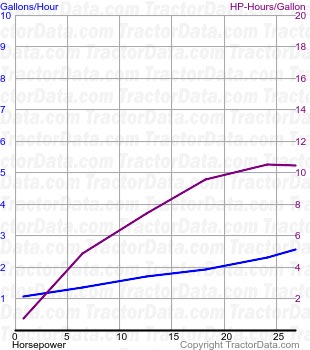

F-20 fuel use from test 276
Nebraska Tractor Test 276
Kerosene 4-speed 2WD
November 5 - 12, 1936
Link: Nebraska Tractor Test 276 file
Belt power (max)27.84 hp
20.8 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power20.66 hp
15.4 kW
Gear 3 used for power test.
Max pull2927 lbs
1327 kg
Gear 1 used for pull test.
