    Farmall Super M - transmission

    Farmall Super M tractor photo I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    1952 - 1954
    Row-Crop tractor
    Previous model:Farmall M
    Next model:Farmall 400
    Smaller:Farmall Super H
    more Farmall Super M specifications...






    Transmission:

    Type:sliding gear
    Gears:5 forward and 1 reverse
    Clutch:12-inch dry disc
    Oil capacity:52 qts [49.2 L]

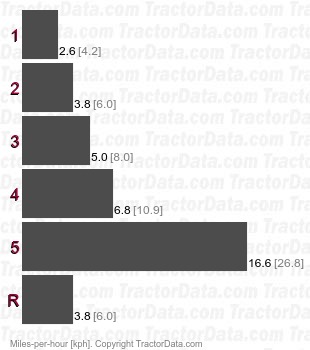

    Speeds:With 12-38 rear tires.
    Super M sliding gear speeds

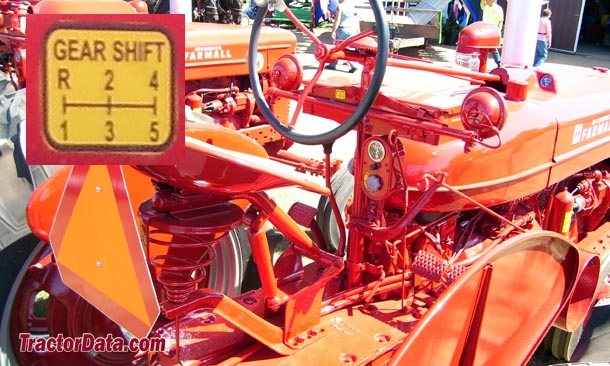

    Farmall Super M transmission photo



    Transmission:

    Transmission:Torque Amplifier
    Type:partial power shift
    Gears:10 forward and 2 reverse
    Available in 1954 on the Super M-TA
    Farmall Super M Torque Amplifier transmission photo
