Farmall Super M Engine


Farmall Super M tractor photo
1952 - 1954
Row-Crop tractor
Series map:
Super H
Super M
32.2hp
51.4hp
Engines overview
International Harvester 4.3L 4-cyl gasoline
International Harvester 4.3L 4-cyl LP gas
Engine Detail
International Harvester C264
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement264 ci
4.3 L
Bore/Stroke4.00x5.25 inches
102 x 133 mm
Fuel use3.657 gal/hour
13.8 l/hour
Air cleaneroil bath
Compression5.9:1
Rated RPM1450
Idle RPM400-1600
Firing order1-3-4-2
Starter volts6
Coolant capacity26 qts
24.6 L
Sparkplug gap0.023 inches
0.584 mm
Intake valve clearance0.017 inches (hot)
0.432 mm
Exhaust valve clearance0.017 inches (hot)
0.432 mm
Engine Oil

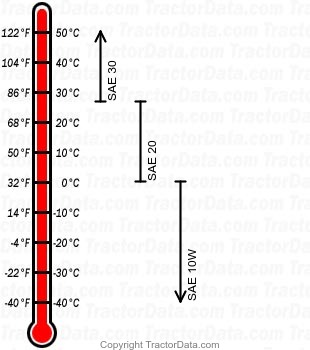

Super M gasoline engine oil chart
Oil capacity8 qts
7.6 L
Engine Detail
International Harvester
LP gas
4-cylinder
liquid-cooled vertical I-head
Displacement264 ci
4.3 L
Bore/Stroke4.00x5.25 inches
102 x 133 mm
Fuel use5.211 gal/hour
19.7 l/hour
Air cleaneroil bath
Compression6.75:1
Rated RPM1450
Firing order1-3-4-2
Starter volts6
