Tractors > Farmall > Super H
      -Brand search:


     Original Farmall Hundred Series 1954-1958
    Original Farmall Hundred Series 1954-1958

    Farmall Super H

    Farmall Super H tractor photo  I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    1953 - 1954
    Row-Crop tractor
    Previous model:Farmall H
    Next model:Farmall 300
    Larger:Farmall Super M
    Smaller:Farmall Super C






    Production:

    Manufacturer:International Harvester
    Total built:28,784
    Original price (USD):$2,100 (1954)


    Farmall Super H Engine:

       International Harvester 2.7L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:17 gal [64.3 L]


    Power Take-off (PTO):

    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:89.25 inches [226 cm]
    Weight:3875 to 6701 pounds
    Front tire:5.50-16
    Rear tire:11-38
    full dimensions and tires ...


    Super H Serial Numbers:

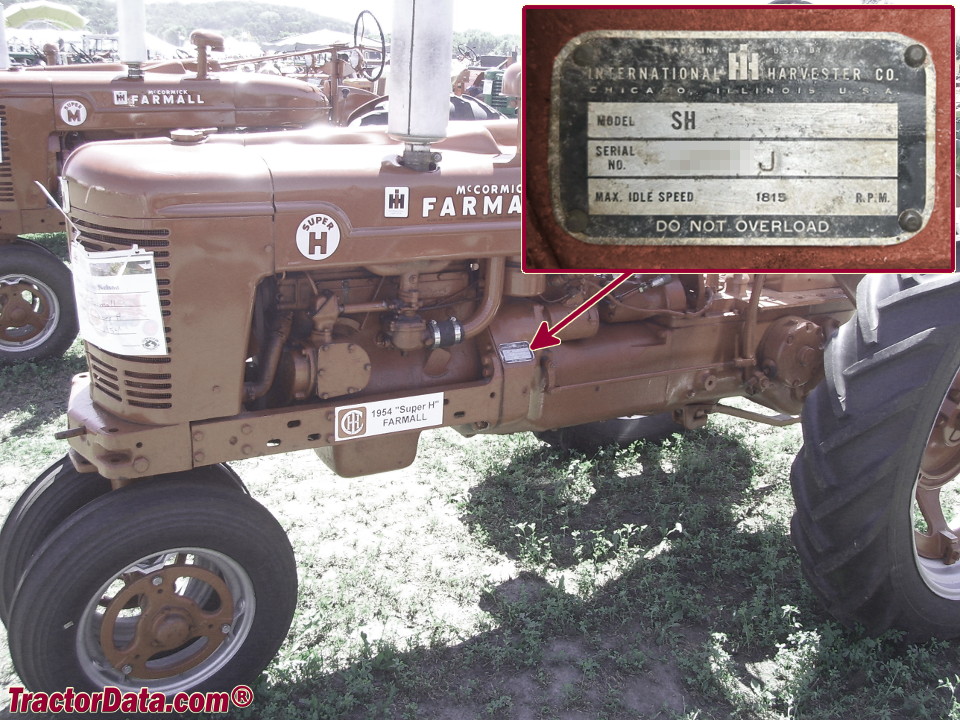

    Location:Left side of clutch housing
    photo of Super H serial number

    1953: 501
    1954: 22202

    how to read serial numbers...



    Links:

    Farmall-H.com: detailed information on the H


    Farmall Super H Power:

    Drawbar (claimed):22 hp [16.4 kW]
    PTO (claimed):29 hp [21.6 kW]
    Drawbar (tested):30.69 hp [22.9 kW]
    Belt (tested):33.40 hp [24.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical disc
    Cab:Open operator station


    Belt Pulley:

    Diameter:9.75 inches [24 cm]
    Width:7.5 inches [19 cm]
    RPMs:1019
    Speed:2,601 ft/min [792.78 meters/min]


    Battery:

    Number:1
    Volts:6
