    Farmall Super H - tests

    Farmall Super H tractor photo  I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    1953 - 1954
    Row-Crop tractor
    Previous model:Farmall H
    Next model:Farmall 300
    Larger:Farmall Super M
    Smaller:Farmall Super C
    more Farmall Super H specifications...






    Nebraska Tractor Test 492:

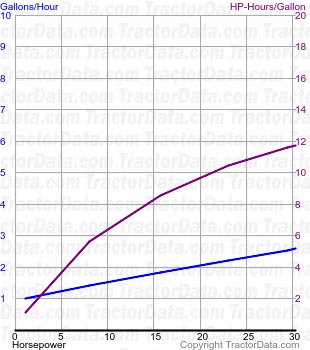

    Super H fuel use from test 492
    Test Date:April 27 - May 13, 1953
    Type:Gasoline 5-speed 2WD
    Belt power (max):33.40 hp [24.9 kW]
    Belt fuel use (max):3.0 gal/hour [11.4 l/hour]
    Drawbar power (max):30.69 hp [22.9 kW]
    Drawbar pull (max):4,178 lbs [1895 kg]
    Max pull gear:1
    Test report:PDF file
