Ford 9600 Transmission


Ford 9600 tractor photo
1972 - 1976
Row-Crop tractor
9000
Series:86009600
9700
Transmissions overview
16-speed partial power shift
8-speed
Transmission
Transmission:Ford Dual Power
Type:partial power shift
Gears:16 forward and 4 reverse
Oil capacity:69 qts
65.3 L
Dual Power adds hydraulically shifted underdrive to the basic eight-speed transmission. Two foot buttons are used to select "power drive" or direct drive. Tractor must be in power drive for stationary PTO work.
Speeds

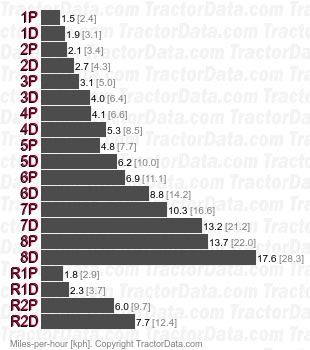

9600 Dual Power partial power shift speeds
Transmission
Gears:8 forward and 2 reverse
Oil capacity:64 qts
60.6 L
Syncrhonized upshift from 3-to-4 and 7-to-8 using the clutch. Tractor must be stopped for all other shifts.
Speeds

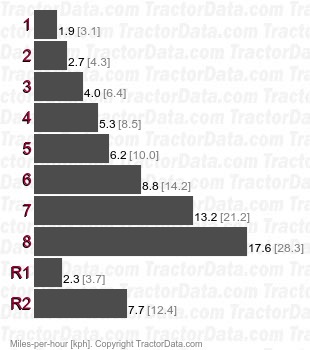

9600   speeds
