Ford 9600 Engine



Ford 9600 tractor photo
1972 - 1976
Row-Crop tractor
Series map:
8600
9600
123.0hp*
150.5hp*
*Estimated engine power for comparison only.
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement401 ci
6.6 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Air cleanerpaper element
Compression16.5:1
Rated RPM2200
Idle RPM700-2470
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity24 qts
22.7 L
 25.5 qts (with heater)
24.1 L
Coolant change1200 h
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

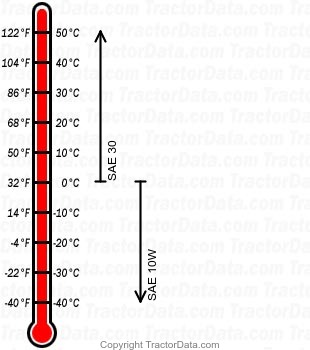

9600 diesel engine oil chart
Oil capacity14 qts
13.2 L
Oil change100 h
