Tractors > Ford > 8000

Ford 8000 Engine



Ford 8000 tractor photo
1968 - 1972
Row-Crop tractor
Series map:
8000
9000
115.5hp
145.0hp
Engine Detail
Ford
diesel
6-cylinder
liquid-cooled
Displacement401 ci
6.6 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Power115.5 hp
86.1 kW
Air cleanerdry
Compression16.5:1
Rated RPM2300
Torque283.5 lb-ft
384.4 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity18 qts
17.0 L
Intake valve clearance0.015 inches (hot)
0.381 mm
Exhaust valve clearance0.018 inches (hot)
0.457 mm
Engine Oil

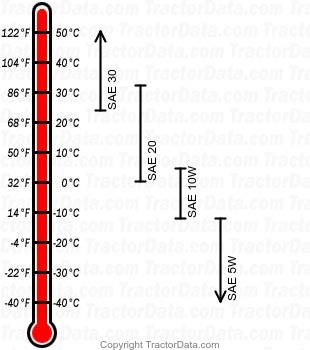

8000 diesel engine oil chart
Oil capacity12 qts
11.4 L
