Tractors > Ford > 5000

Ford 5000 Engine



Ford 5000 tractor photo
1965 - 1976
Model year
Row-Crop tractor
Series map:
4000
5000
Commander 6000
50.0hp*
69.0hp
72.2hp*
*Estimated engine power for comparison only.
Engines overview
Ford 3.8L 4-cyl gasoline
Ford 3.8L 4-cyl diesel
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled
Displacement233 ci
3.8 L
Bore/Stroke4.20x4.20 inches
107 x 107 mm
Power69 hp
51.5 kW
Compression8.0:1
Rated RPM2100
Firing order1-3-4-2
Starter volts12
Coolant capacity15.3 qts
14.5 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil
5000 gasoline engine oil chart
Oil capacity8 qts
7.6 L
Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement233 ci
3.8 L
Bore/Stroke4.20x4.20 inches
107 x 107 mm
Compression16.5:1
Rated RPM2100
Firing order1-3-4-2
Starter volts12
Coolant capacity15.3 qts
14.5 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

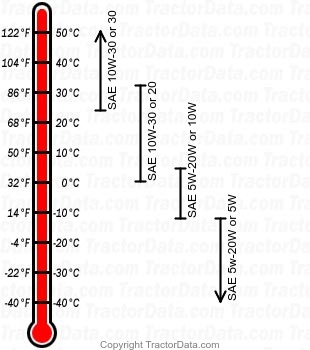

5000 diesel engine oil chart
Oil capacity8 qts
7.6 L
Ford 5000 Engine

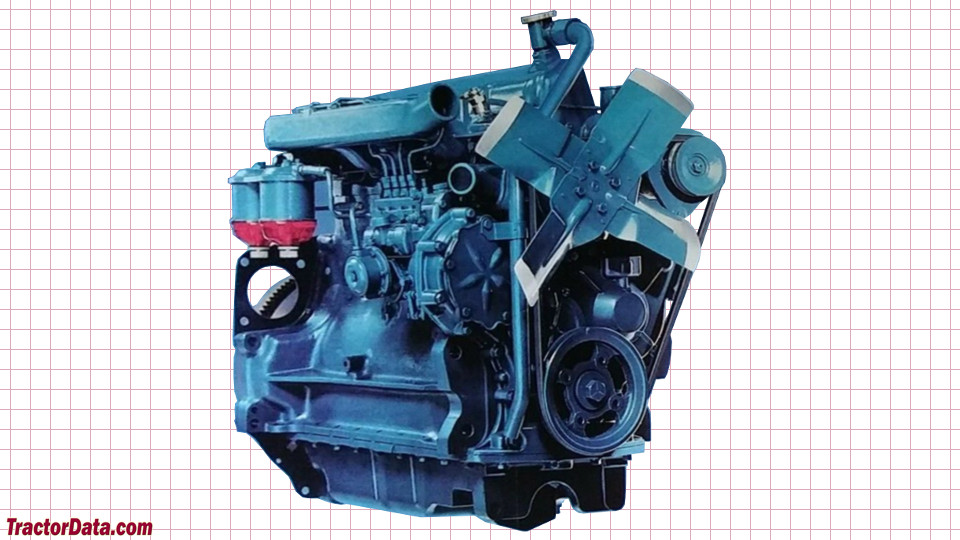

Ford 5000 engine image
