Tractors > Ford > 4100
      -Brand search:


    Ford 4100 - tests

    Ford 4100 tractor photo  I&T Manual: Ford 2310, 2600, 2610, 3600, 3610, 4100, 4110, 4600
    I&T Shop Manual
    1975 - 1981
    Utility tractor
    Larger:Ford 4600
    more Ford 4100 specifications...






    Nebraska Tractor Test 1202:

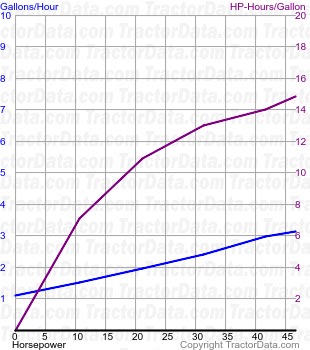

    4100 fuel use from test 1202
    Test Date:March 16 - April 5, 1976
    Type:Diesel 8-speed 2WD
    PTO power (rated engine speed):45.46 hp [33.9 kW]
    PTO fuel use (engine speed):3.1 gal/hour [11.7 l/hour]
    PTO power (rated PTO speed):41.13 hp [30.7 kW]
    PTO fuel use (PTO speed):2.6 gal/hour [9.8 l/hour]
    Drawbar power (max):39.18 hp [29.2 kW]
    Drawbar fuel use (max):3.1 gal/hour [11.7 l/hour]
    Drawbar pull (max):5557 lbs [2520 kg]
    Max pull gear:2
    Test report:PDF file
