Tractors > Ford > 2000

Ford 2000

Ford 2000 tractor photo
1962 - 1975
Model years
Utility tractor
Next model:Ford 2000
Series next:Ford 4000

The four-cylinder Ford 2000 tractor was very similar to the 601 Workmaster series of Ford tractors. It is entirely different than the later three-cylinder 2000 which replaced it.


Factory:Highland Park, Michigan, USA

Ford 2000 Engines:

   Ford 2.4L 4-cyl diesel
   Ford 2.2L 4-cyl gasoline
full engine details ...


Fuel:13 gal [49.2 L]
Hydraulic system:2 gal [7.6 L]

3-Point Hitch:

Rear Type:I

Power Take-off (PTO):

Rear PTO:tranmission
 live*Optional, available with the five-speed transmission.
 independent*Independent PTO available with the Select-O-Speed transmission.
Rear RPM:540
 540/1000*Optional, available with the Select-O-Speed tranmission.

Dimensions & Tires:

Wheelbase:75.8 inches [192 cm]
Weight:3000 lbs [1360 kg]
Front tire:5.50-16
Rear tire:11.2-28
full dimensions and tires ...

2000 Serial Numbers:

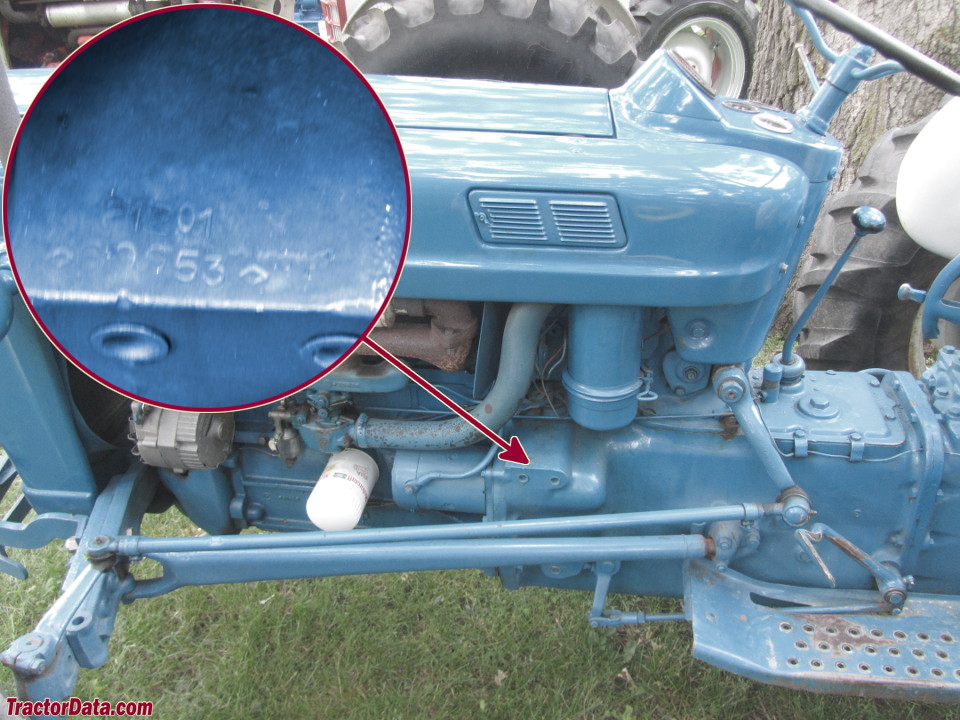

Location:Serial number stamped on the top of the starter mount casting, on the right side of the tractor.
photo of 2000 serial number

1962: 1001
1963: 11949
1964: 38931

how to read serial numbers...


Ford 2000 Power:

Engine:36 hp [26.8 kW]
Drawbar (claimed):28 hp [20.9 kW]
PTO (claimed):31 hp [23.1 kW]


Chassis:4x2 2WD
Cab:Open operator station.


Type:open center
Capacity:2 gal [7.6 L]
Pressure:2000 psi [137.9 bar]
Pump flow:4.0 gpm [15.1 lpm]


Ground:positive (6V)
 negative (12V)


Volts:6 (gas/LP)
 12 (diesel)
