| | 1983 - 1986 |
| Ten Compact Series | | Compact Utility tractor | | Shibaura built |
|
Series map:
1110
1210
1310
13.0hp
16.0hp
19.0hp
| Transmissions overview |
| 10-speed gear |
| hydrostatic |
| 15-speed creeper |
| Transmission |
| Type | gear
|
| Gears | 10 forward and 2 reverse
|
| Clutch | 184mm dry disc
|
| Oil capacity | 17 qts
16.1 L
|

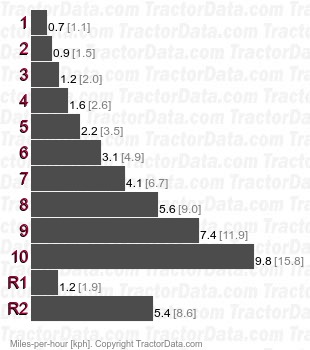

| Speeds |
| With 8-16 rear tires. |
|
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (2-range)
|

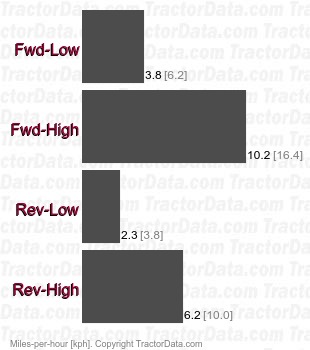

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 15 forward and 3 reverse
|
| Optional creeper provides an additional low range to the gear transmission. |

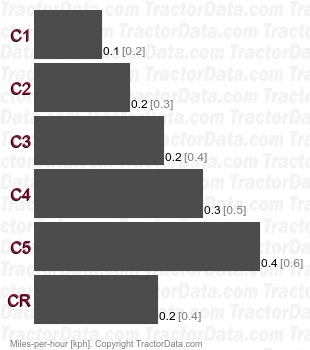

| Speeds |
|
