Ford FW-30 - transmission

Ford FW-30 tractor photo
1977 - 1982   FW Series
Four-wheel Drive (4WD) tractor
Series next:Ford FW-40
Series back:Ford FW-20
more Ford FW-30 specifications...






Transmission:

Transmission:Spicer 1010
Gears:10 forward and 2 reverse
Clutch:hydraulic 355mm cerametallic dry discs
Oil capacity:37 qts [35.0 L]
Five gears (1-5) plus reverse (R) in two ranges (low/high).

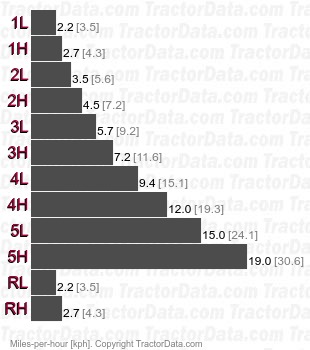

Speeds:
FW-30 1010  speeds


Transmission:

Gears:20 forward and 4 reverse
Clutch:hydraulic dry disc
Optional dual-speed transfer case provides 20 forward gears on the base 10-speed transmission.

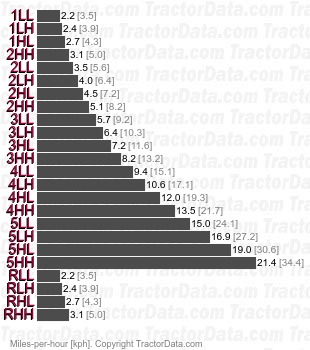

Speeds:
FW-30   speeds
