Tractors > Ford > FW-30

Ford FW-30 Tests



Ford FW-30 tractor photo
1977 - 1982
FW Series
Four-wheel Drive (4WD) tractor
Steiger built
Series map:
FW-20
FW-30
FW-40
210.0hp
265.0hp
295.0hp
Nebraska Tractor Test 1288

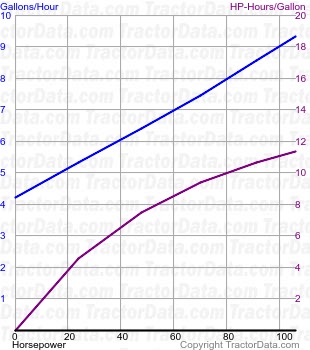

FW-30 fuel use from test 1288
Nebraska Tractor Test 1288
Diesel 20-speed 4WD
September 25 - October 14, 1978
Link: Nebraska Tractor Test 1288 file
PTO performance
Power at rated PTO speed105.31 hp
78.5 kW
Fuel use10.9 gal/hour
41.3 l/hour
Drawbar performance
Max power205.2 hp
153.0 kW
Fuel use15.0 gal/hour
56.8 l/hour
Gear 3LS used for power test.
Max pull27803 lbs
12611 kg
Gear 1LO used for pull test.
