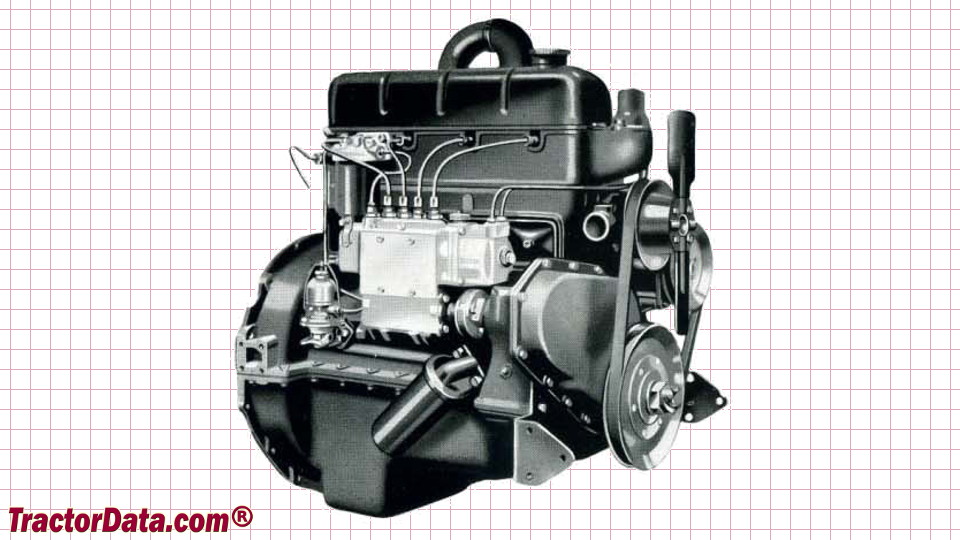

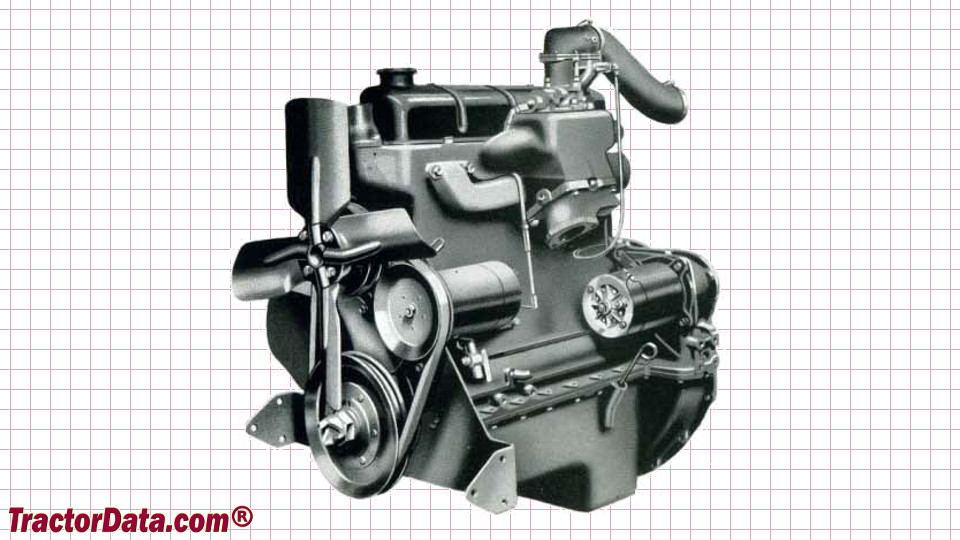

Fordson E1A New Major Engine
|
|
Series map:
New Major
29.0kw*
*Estimated engine power for comparison only.
| Engines overview | |
| Ford 3.3L 4-cyl all fuel | |
| Ford 3.3L 4-cyl gasoline | |
| Ford 3.6L 4-cyl diesel |
| Engine Detail | |
| Ford | |
| all fuel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 198.9 ci 3.3 L |
| Bore/Stroke | 3.74x4.52 inches 95 x 115 mm |
| Compression | 4.61:1 |
| 4.35:1 (early type) | |
| Rated RPM | 1600 |
| Firing order | 1-2-4-3 |
| Starter volts | 12 |
| Oil capacity | 7.2 qts 6.8 L |
| Fordson New Major Engine | |
 |
| Engine Detail | |
| Ford | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 198.9 ci 3.3 L |
| Bore/Stroke | 3.74x4.52 inches 95 x 115 mm |
| Compression | 5.5:1 |
| Rated RPM | 1600 |
| Firing order | 1-2-4-3 |
| Starter volts | 12 |
| Oil capacity | 7.2 qts 6.8 L |
| Coolant capacity | 12.4 qts 11.7 L |
| Engine Detail | |
| Ford | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 220 ci 3.6 L |
| Bore/Stroke | 3.937x4.52 inches 100 x 115 mm |
| Compression | 16.0 : 1 |
| Rated RPM | 1600 |
| Firing order | 1-2-4-3 |
| Starter volts | 12 |

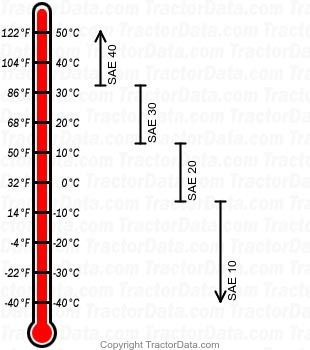

| Engine Oil | |
| |
| Oil capacity | 7.2 qts 6.8 L |
| Fordson New Major Engine | |
 |
