Allis Chalmers 7060 Engine

Allis Chalmers 7060 tractor photo
1974 - 1981
Row-Crop tractor
Engine Detail
Allis Chalmers 670I
intercooled turbocharged diesel
liquid-cooled Inline
Displacement:426 ci
7.0 L
Bore/Stroke:4.25x5.00 inches
108 x 127 mm
Power:192 hp
143.2 kW
Air cleaner:dry with pre-cleaner
Rated RPM:2300
Firing order:1-5-3-6-2-4
Starter volts:12
Coolant capacity:32 qts
30.3 L
Intake valve clearance:0.015 inches
0.381 mm (hot)
Exhaust valve clearance:0.015 inches
0.381 mm (hot)
Engine Oil

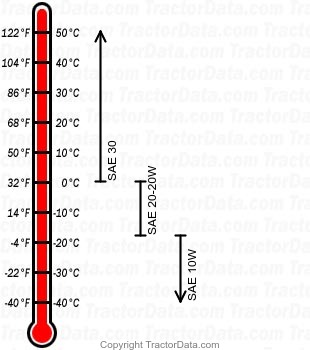

7060 diesel engine oil chart
Oil capacity:25 qts
23.7 L
