Allis Chalmers 7000 - transmission

Allis Chalmers 7000 tractor photo
1975 - 1979
Previous model:Allis Chalmers 200
Next model:Allis Chalmers 7010
more Allis Chalmers 7000 specifications...






Transmission:

Transmission:Power Director
Type:partial power shift
Gears:12 forward and 3 reverse
Clutch:12-inch dry disc (main)
 7-inch wet discs (power shift)
Oil capacity:26 qts [24.6 L]
Four forward gears and one reverse combined with three-range power shift between low, direct, and overdrve. Used on the maroon-chassis model 7000. Power shift was similar to the Allis Power-Director system, with a third clutch added to provide an overdrive.
Speeds:

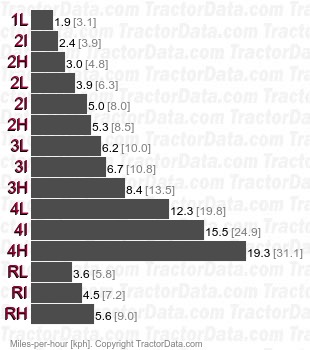

7000 Power Director partial power shift speeds


Transmission:

Type:partial power shift
Gears:12 forward and 3 reverse
Four forward gears and one reverse combined with three-range power shift between low, direct, and overdrve. The black-chassis Allis 7000 used a new hydraulic wet clutch and torque limiter. A combination clutch/inching pedal put the transmission into low range when depressed.
Speeds:
7000  partial power shift speeds
