    Allis Chalmers 190XT - tests

    Allis Chalmers 190XT tractor photo  I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    Production years:1964 - 1971
    Tractor type:Farm/Agricultural tractor
    more Allis Chalmers 190XT specifications...






    Nebraska Tractor Test 887:

    Test Date:April 10 - 16, 1965
    Type:8-speed 2WD
    Engine:diesel
    PTO power (rated engine speed):93.64 hp [69.8 kW]
    PTO fuel use (engine speed):5.7 gal/hour [21.6 l/hour]
    PTO power (rated PTO speed):89.71 hp [66.9 kW]
    PTO fuel use (PTO speed):5.3 gal/hour [20.1 l/hour]
    Drawbar power (max):79.12 hp [59.0 kW]
    Drawbar fuel use (max):5.7 gal/hour [21.6 l/hour]
    Test report:PDF file

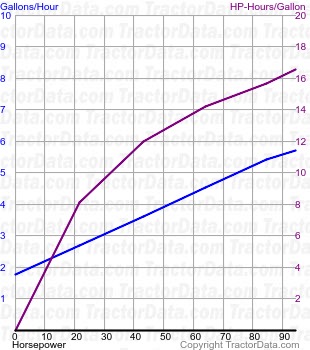

    Nebraska Tractor Test 927:

    Test Date:November 9 - 17, 1965
    Type:8-speed
    Engine:LP gas
    PTO power (rated engine speed):85.25 hp [63.6 kW]
    PTO fuel use (engine speed):9.9 gal/hour [37.5 l/hour]
    PTO power (rated PTO speed):76.36 hp [56.9 kW]
    PTO fuel use (PTO speed):8.7 gal/hour [32.9 l/hour]
    Drawbar power (max):71.95 hp [53.7 kW]
    Drawbar fuel use (max):10.0 gal/hour [37.9 l/hour]
    Test report:PDF file

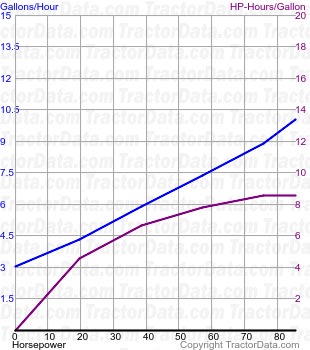

    Nebraska Tractor Test 929:

    Test Date:November 9 - 16, 1965
    Type:8-speed 2WD
    Engine:gasoline
    PTO power (rated engine speed):89.53 hp [66.8 kW]
    PTO fuel use (engine speed):8.0 gal/hour [30.3 l/hour]
    PTO power (rated PTO speed):82.30 hp [61.4 kW]
    PTO fuel use (PTO speed):7.2 gal/hour [27.3 l/hour]
    Drawbar power (max):76.65 hp [57.2 kW]
    Drawbar fuel use (max):8.5 gal/hour [32.2 l/hour]
    Test report:PDF file
