    John Deere 4760

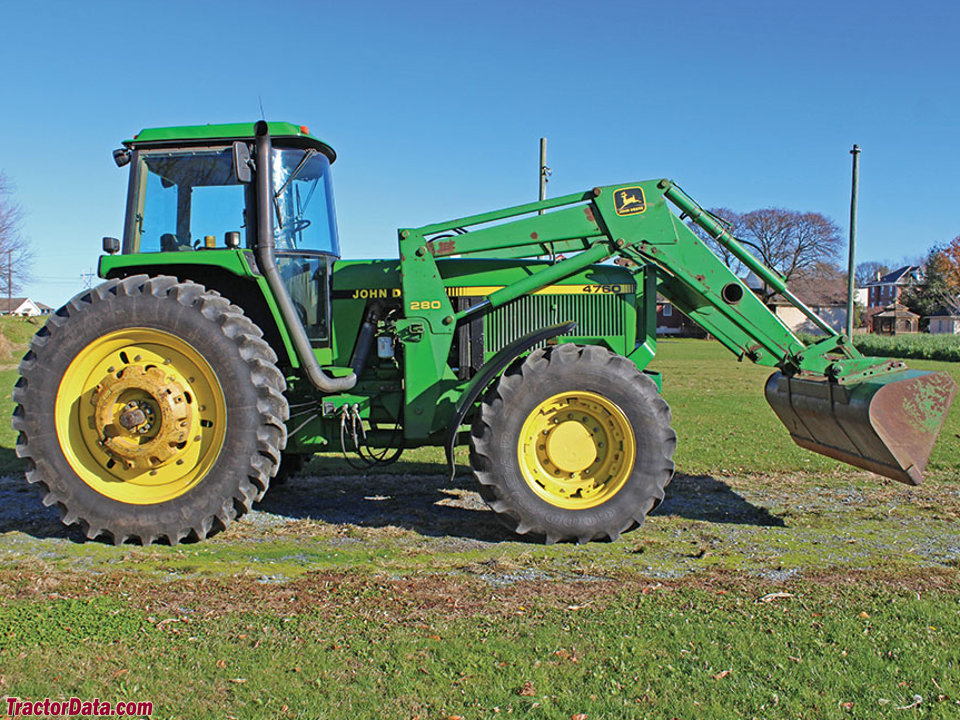

    John Deere 4760 tractor photo
    1992 - 1994   4060 Series
    Row-Crop tractor
    Previous model:John Deere 4755
    Next model:John Deere 8200
    Larger:John Deere 4960
    Smaller:John Deere 4560






    Production:

    Manufacturer:John Deere
    Factory:Waterloo, Iowa, USA


    John Deere 4760 Engine:

       John Deere 7.6L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:102 gal [386.1 L]
    Hydraulic system:19.8 gal [74.9 L]


    3-Point Hitch:

    Rear Type:3/3N
    Control:electrohydraulic draft sensing
    Rear lift:8,283 lbs [3757 kg]
     10,041 lbs [4554 kg] (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:1000


    Dimensions & Tires:

    2WD Wheelbase:118.5 inches [300 cm]
    4WD Wheelbase:117.1 inches [297 cm]
    Weight:18,703 lbs [8483 kg]
    full dimensions and tires ...


    John Deere 4760 attachments:

     front-end loader
    all 4760 attachments ...


    4760 Serial Numbers:

    Location:Rear of transmission
    1992: 1001
    1993: 2941
    1994: 5701

    how to read serial numbers...



    John Deere 4760 Power:

    PTO (claimed):175 hp [130.5 kW]
    Drawbar (tested):156.97 hp [117.1 kW]
    PTO (tested):180.35 hp [134.5 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Final drives:inboard planetary
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Sound-Gard cab standard.


    Hydraulics:

    Type:closed center
    Capacity:19.8 gal [74.9 L]
    Pressure:2530 psi [174.4 bar]
    Rear valves:3 or 4
    Pump flow:35.2 gpm [133.2 lpm] (Quad Range)
     31.6 gpm [119.6 lpm] (Power Shift)


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:120


    Battery:

    Number:2
    Cold-cranking amps:925
    Volts:12
