John Deere 8960


John Deere 8960 tractor photo
1989 - 1993
8060 Series
Four-wheel Drive (4WD) tractor
8850
Series:87608960
8970
Production
Manufacturer:John Deere
Type:Four-wheel Drive (4WD) tractor
Factory:Waterloo, Iowa, USA
Original price:$142,000 (1989 )
John Deere 8960 Power
Engine:370 hp
275.9 kW
PTO (claimed):332 hp
247.6 kW
Drawbar (tested):308.26 hp
229.9 kW
PTO (tested):337.42 hp
251.6 kW
power test details ...
John Deere 8960 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 articulated 4WD
Steering:articulated power
Brakes:hydraulic wet disc
Cab:Sound-Gard Cab standard.
Transmissions:12-speed partially synchronized
 24-speed partial power shift
 12-speed full power shift
Transmission details ...
Capacity
Fuel:220 gal
832.7 L
Hydraulic system:47 gal
177.9 L
Hydraulics
Type:closed-center pressure compensated
Capacity:47 gal
177.9 L
Valves:3
Pump flow:39.6 gpm
149.9 lpm
SCV flow:33.3 gpm
126.0 lpm
Tractor hitch
Rear Type:IV
Rear lift:13966 lbs
6334 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:134 inches
340 cm
Weight:35115 lbs
15928 kg
Front tire:20.8R-38
Rear tire:20.8R-38
Full dimensions and tires ...
8960 Serial Numbers

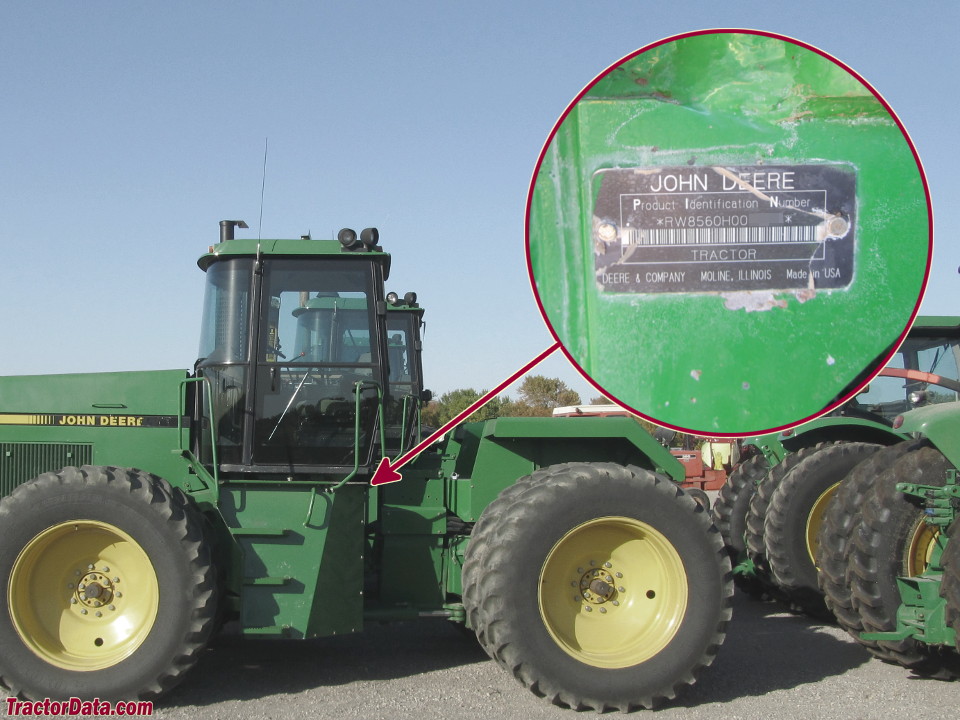

Location:Data plate behind left-side step
photo of 8960 serial number

1989: 1001
1990: 1501
1991: 2501
1992: 2937
1993: 4449

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery
Number:3
Cold-cranking amps:925
Volts:12
