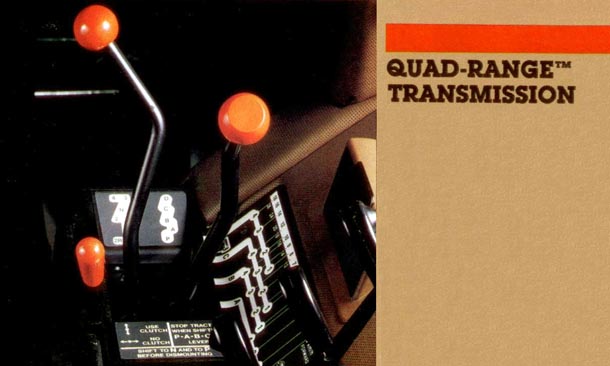

Transmission: |
| : | Quad-Range
|
| Type: | -unknown- |
| Forward: | 16
|
| Reverse: | 6
|
| Oil capacity: | 64 qts [60.6 L]
|
| Comments: | Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.
|

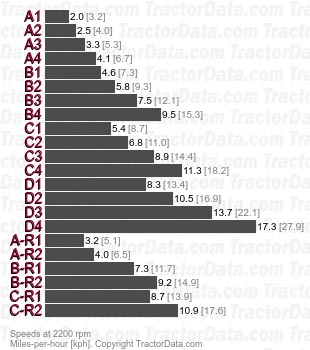

| Speeds: | 18.4-38 rear tires.
| Gear | 2200 rpm | | A1 | 1.98mph [3.2kph] | | A2 | 2.51mph [4.0kph] | | A3 | 3.28mph [5.3kph] | | A4 | 4.14mph [6.7kph] | | B1 | 4.56mph [7.3kph] | | B2 | 5.77mph [9.3kph] | | B3 | 7.54mph [12.1kph] | | B4 | 9.53mph [15.3kph] | | C1 | 5.41mph [8.7kph] | | C2 | 6.84mph [11.0kph] | | C3 | 8.94mph [14.4kph] | | C4 | 11.29mph [18.2kph] | | D1 | 8.30mph [13.4kph] | | D2 | 10.50mph [16.9kph] | | D3 | 13.72mph [22.1kph] | | D4 | 17.34mph [27.9kph] | | A-R1 | 3.18mph [5.1kph] | | A-R2 | 4.01mph [6.5kph] | | B-R1 | 7.30mph [11.7kph] | | B-R2 | 9.23mph [14.9kph] | | C-R1 | 8.66mph [13.9kph] | | C-R2 | 10.94mph [17.6kph] |
|
| |

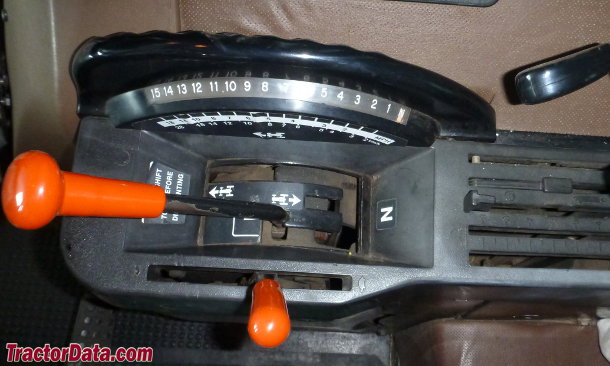

Transmission: |
| : | Power Shift
|
| Type: | -unknown- |
| Forward: | 15
|
| Reverse: | 4
|
| Oil capacity: | 42 qts [39.7 L] (2WD)
54 qts [51.1 L] (4WD)
|
| Comments: | Optional transmission. Full (clutchless) power shift can be made between gears, forward and reverse.
|

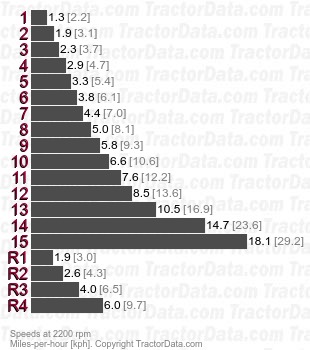

| Speeds: | 18.4-38 rear tires.
| Gear | 2200 rpm | | 1 | 1.34mph [2.2kph] | | 2 | 1.91mph [3.1kph] | | 3 | 2.31mph [3.7kph] | | 4 | 2.90mph [4.7kph] | | 5 | 3.34mph [5.4kph] | | 6 | 3.80mph [6.1kph] | | 7 | 4.37mph [7.0kph] | | 8 | 5.02mph [8.1kph] | | 9 | 5.79mph [9.3kph] | | 10 | 6.57mph [10.6kph] | | 11 | 7.57mph [12.2kph] | | 12 | 8.46mph [13.6kph] | | 13 | 10.48mph [16.9kph] | | 14 | 14.65mph [23.6kph] | | 15 | 18.13mph [29.2kph] | | R1 | 1.85mph [3.0kph] | | R2 | 2.65mph [4.3kph] | | R3 | 4.02mph [6.5kph] | | R4 | 6.05mph [9.7kph] |
|
| |
