    John Deere 2950

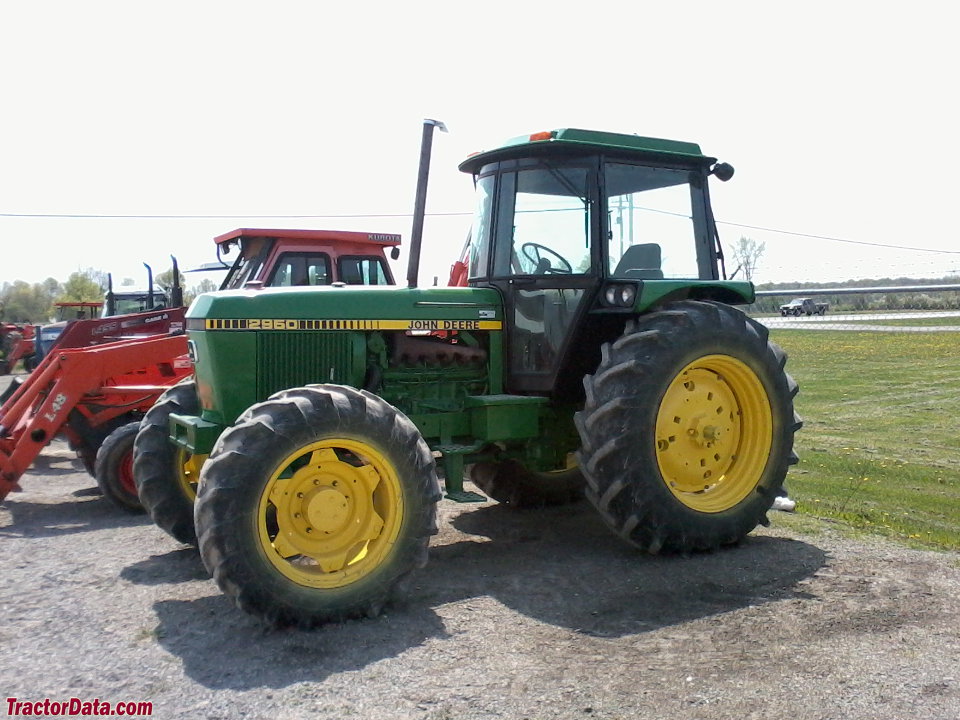

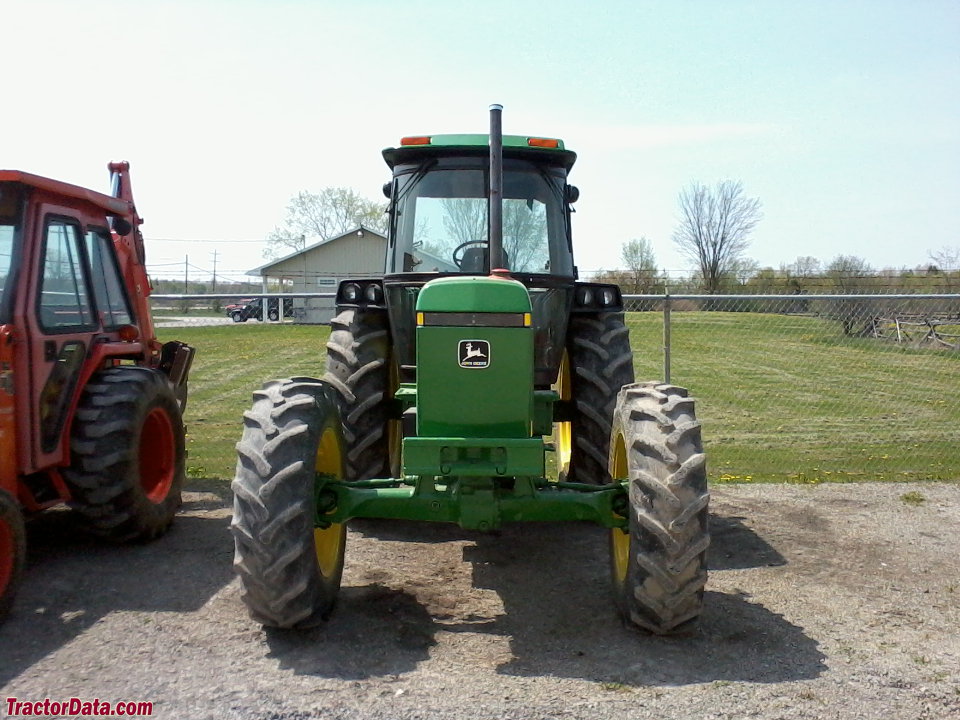

    John Deere 2950 tractor photo  I&T Manual: Deere 2840, 2940, 2950
    I&T Shop Manual
    1983 - 1988   2050 Series
    Utility tractor
    Previous model:John Deere 2940
    Next model:John Deere 2955
    Smaller:John Deere 2750






    Production:

    Manufacturer:John Deere
    Factory:Mannheim, Baden-Württemberg, Germany
    Original price (USD):$30,000 (1986)


    John Deere 2950 Engine:

       John Deere 5.9L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:32.3 gal [122.3 L]


    3-Point Hitch:

    Rear Type:II
    Control:load and depth control
    Rear lift:4,868 lbs [2208 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    2WD Wheelbase:100.4 inches [255 cm]
    4WD Wheelbase:101.6 inches [258 cm]
    Weight:10100 to 11045 pounds
    Front tire:10.00-16:18.4-34
    full dimensions and tires ...


    2950 Serial Numbers:

    Location:Right side of main tractor frame, above front axle.
    1983: 433508
    1984: 505001
    1985: 532000
    1986: 562001
    1987: 587950
    1988: 592001

    how to read serial numbers...



    John Deere 2950 Power:

    PTO (claimed):85 hp [63.4 kW]
    Drawbar (tested):72.12 hp [53.8 kW]
    PTO (tested):85.37 hp [63.7 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:rear standard
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Two-post ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.


    Hydraulics:

    Type:closed center
    Rear valves:2
    Pump flow:23 gpm [87.1 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:55


    Battery:

    Number:1
    Volts:12
