Tractors > John Deere > 4040

John Deere 4040 - tests

John Deere 4040 tractor photo
1978 - 1982   Iron Horses Series
Row-Crop tractor
Previous model:John Deere 4030
Next model:John Deere 4050
Series next:John Deere 4240
more John Deere 4040 specifications...






Nebraska Tractor Test 1267:

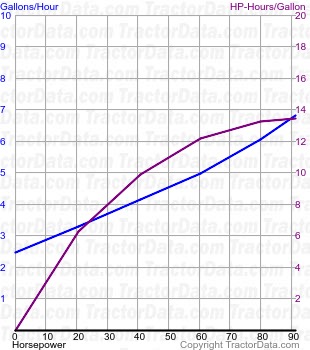

4040 fuel use from test 1267
Test Date:November 12 - 28, 1977
Type:Diesel Quad-Range 2WD
PTO power (rated engine speed):90.80 hp [67.7 kW]
PTO fuel use (engine speed):6.7 gal/hour [25.4 l/hour]
Drawbar power (max):74.83 hp [55.8 kW]
Drawbar fuel use (max):6.7 gal/hour [25.4 l/hour]
Drawbar pull (max):8,936 lbs [4053 kg]
Max pull gear:A3
Test report:PDF file


Nebraska Tractor Test 1359:

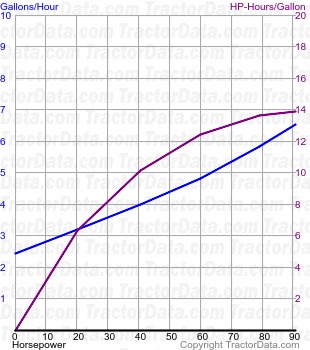

4040 fuel use from test 1359
Test Date:August 20 - September 9, 1980
Type:Diesel Syncro-Range 2WD
PTO power (rated engine speed):90.31 hp [67.3 kW]
PTO fuel use (engine speed):6.5 gal/hour [24.6 l/hour]
Drawbar power (max):73.83 hp [55.1 kW]
Drawbar fuel use (max):6.3 gal/hour [23.8 l/hour]
Drawbar pull (max):9,035 lbs [4098 kg]
Max pull gear:2
Test report:PDF file


Nebraska Tractor Test 1360:

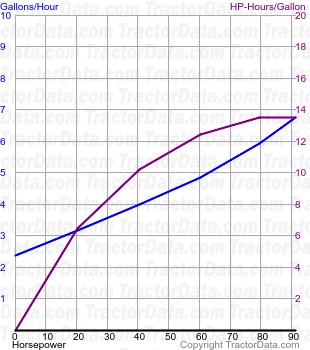

4040 fuel use from test 1360
Test Date:August 20 - September 11, 1980
Type:Diesel Powershift 2WD
PTO power (rated engine speed):90.79 hp [67.7 kW]
PTO fuel use (engine speed):6.7 gal/hour [25.4 l/hour]
PTO power (rated PTO speed):90.88 hp [67.8 kW]
PTO fuel use (PTO speed):6.7 gal/hour [25.4 l/hour]
Drawbar power (max):76.56 hp [57.1 kW]
Drawbar fuel use (max):6.7 gal/hour [25.4 l/hour]
Drawbar pull (max):9,195 lbs [4170 kg]
Max pull gear:2
Test report:PDF file
