John Deere 435 Tests

John Deere 435 tractor photo
1959 - 1960
Utility tractor
Nebraska Tractor Test 716

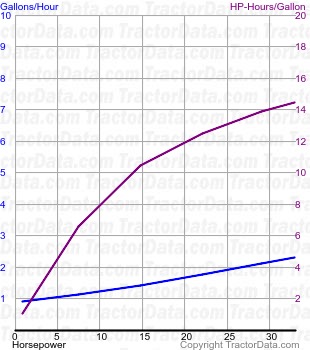

435 fuel use from test 716
Nebraska Tractor Test 716
Diesel 5-speed 2WD
September 8 - 18, 1959
Link: Nebraska Tractor Test 716 file
PTO performance
Power at rated engine speed:32.91 hp
24.5 kW
Fuel use:2.3 gal/hour
8.7 l/hour
Power at rated PTO speed:32.13 hp
24.0 kW
Fuel use:2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power:27.59 hp
20.6 kW
Fuel use:2.4 gal/hour
9.1 l/hour
Gear 3 used for power test.
Max pull:4,241 lbs
1923 kg
Gear 1 used for pull test.
