John Deere 435 Engine


John Deere 435 tractor photo
1959 - 1960
Utility tractor
Engine Detail
General Motors 2-53
supercharged diesel
2-cylinder
liquid-cooled
2-cycle engine
Displacement106.1 ci
1.7 L
Bore/Stroke3.875x4.50 inches
98 x 114 mm
Air cleaneroil bath
Compression17:1
Rated RPM1850
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity10 qts
9.5 L

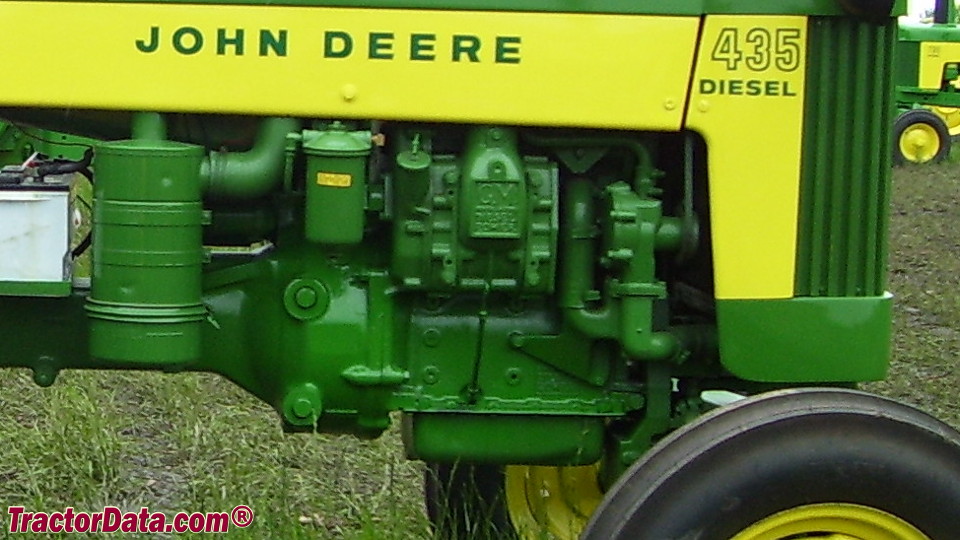

John Deere 435 Engine
John Deere 435 engine image
