| | 1949 - 1954 |
| Two-Cylinder Letter Series | | Standard-tread tractor |
|
Series map:
R
43.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| John Deere |
| diesel |
| 2-cylinder |
| liquid-cooled |
| Displacement | 415.5 ci
6.8 L
|
| Bore/Stroke | 5.75x8.00 inches
146 x 203 mm
|
| Air cleaner | oil bath
|
| Compression | 16:1
|
| Rated RPM | 1000
|
| Firing order | 1-2
|
| Starter type | 2-cylinder pony motor
|
| Coolant capacity | 54.5 qts
51.6 L
|

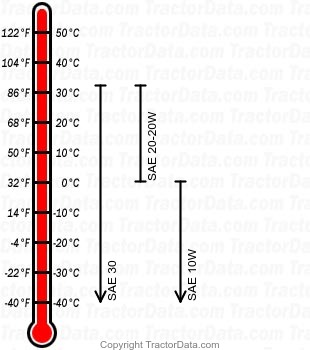

| Engine Oil |
|
| Oil capacity | 13 qts
12.3 L
|
