    Allis Chalmers D19

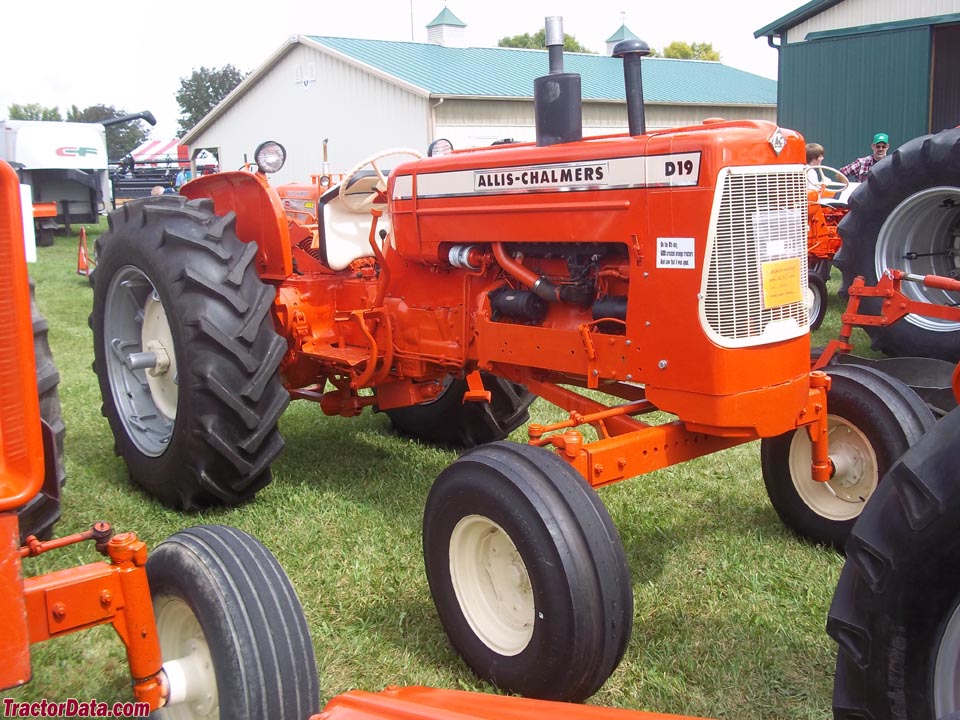

    Allis Chalmers D19 tractor photo  I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    1961 - 1964   D Series
    Row-Crop tractor






    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:10,591
    Original price (USD):$5,300 (1964)


    Allis Chalmers D19 Engines:

       Allis Chalmers 4.3L 6-cyl gasoline
       Allis-Chalmers 4.3L 6-cyl diesel
       Allis-Chalmers 4.3L 6-cyl LP gas
    full engine details ...


    Capacity:



    Rear Hitch:

    Type:Snap-Coupler


    3-Point Hitch:

    Rear Type:II


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:102.4 inches [260 cm]
    Weight:6650 to 11210 pounds
    Front tire:6.50x16
    Rear tire:15.5x38
    full dimensions and tires ...


    D19 Serial Numbers:

    Location:Top side of rear axle, below the seat
    1961: 1001
    1962: 1250
    1963: 12001
    1964: 14945

    how to read serial numbers...



    Allis Chalmers D19 Power:

    Drawbar (claimed):63.9 hp [47.7 kW]
    PTO (claimed):65 hp [48.5 kW]
     70 hp [52.2 kW] (gasoline)
    Plows:5
    Drawbar (tested):63.91 hp [47.7 kW]
    PTO (tested):71.54 hp [53.3 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:power assist
    Brakes:differential mechanical band and dry disc
    Cab:Open operator station.


    Battery:

    Volts:12
