Tractors > Allis Chalmers > UC

Allis Chalmers UC - tests

Allis Chalmers UC tractor photo
1930 - 1941
Row-Crop tractor
more Allis Chalmers UC specifications...






Nebraska Tractor Test 189:

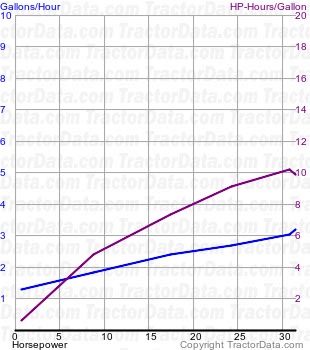

UC fuel use from test 189
Test Date:April 17 - May 13, 1931
Type:Continental 3-speed 2WD
Belt power (max):36.09 hp [26.9 kW]
Belt fuel use (max):4.1 gal/hour [15.5 l/hour]
Drawbar power (max):24.98 hp [18.6 kW]
Drawbar pull (max):3,763 lbs [1706 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 238:

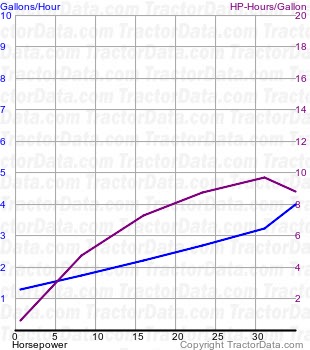

UC fuel use from test 238
Test Date:June 16 - August 8, 1935
Type:Allis 300 ci 4-speed 2WD
Belt power (max):34.09 hp [25.4 kW]
Belt fuel use (max):4.1 gal/hour [15.5 l/hour]
Drawbar power (max):21.14 hp [15.8 kW] (rubber)
 23.67 hp [17.7 kW] (steel)
Drawbar pull (max):2,297 lbs [1041 kg] (rubber)
 2,593 lbs [1176 kg] (steel)
Test report:PDF file
