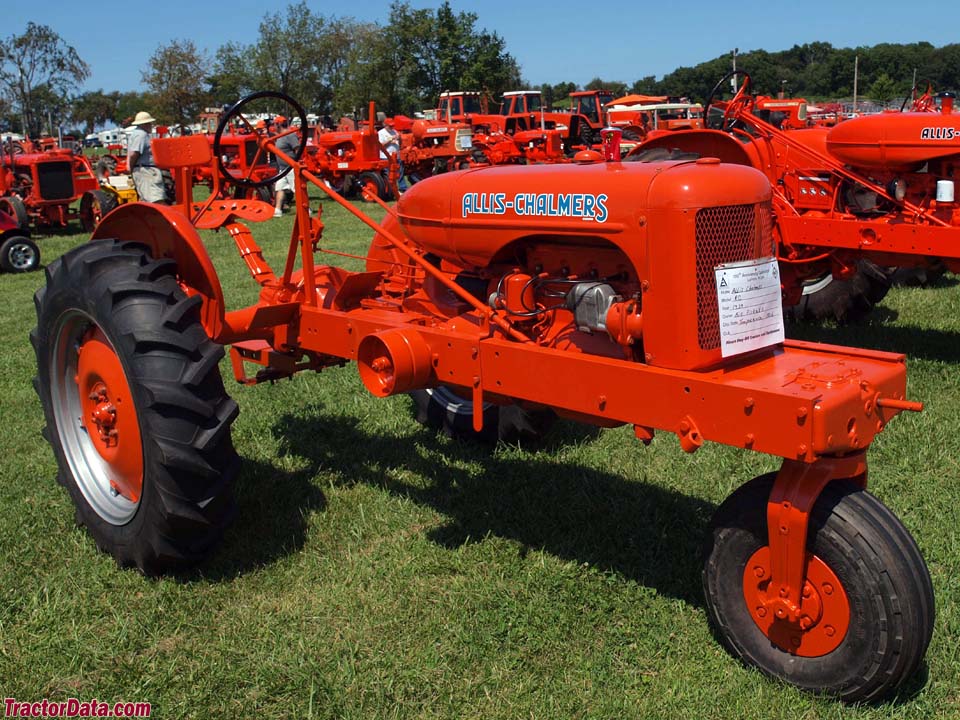

    Allis Chalmers RC

    No photo available  I&T Manual: Allis-Chalmers B, C, CA, G, RC, WC, WD, WD45, WF
    I&T Shop Manual
    1938 - 1941
    Farm/Agricultural tractor
    Next model:Allis Chalmers C





    The Allis Chalmers RC was a less-expensive version of the WC, using a smaller engine. It used the same frame so it could mount the same implements as the WC. The RC sold poorly, and was replaced by the successful Allis model C.


    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:5,501


    Allis Chalmers RC Engine:

       Allis-Chalmers 2.1L 4-cyl distillate
    full engine details ...


    Capacity:

    Fuel:13 gal [49.2 L]
    Aux. fuel:1 gal [3.8 L]


    Dimensions & Tires:

    Weight:2495 to 4005 pounds
    Front tire:4.75-15
    Rear tire:10-28
    full dimensions and tires ...


    RC Serial Numbers:

    1939: 4
    1940: 4392
    1941: 5417

    how to read serial numbers...



    Allis Chalmers RC Power:

    Drawbar (claimed):12 hp [8.9 kW]
    Belt (claimed):16 hp [11.9 kW]
    Plows:2
    Drawbar (tested):12.11 hp [9.0 kW]
    PTO (tested):16.24 hp [12.1 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
