    Allis Chalmers CA

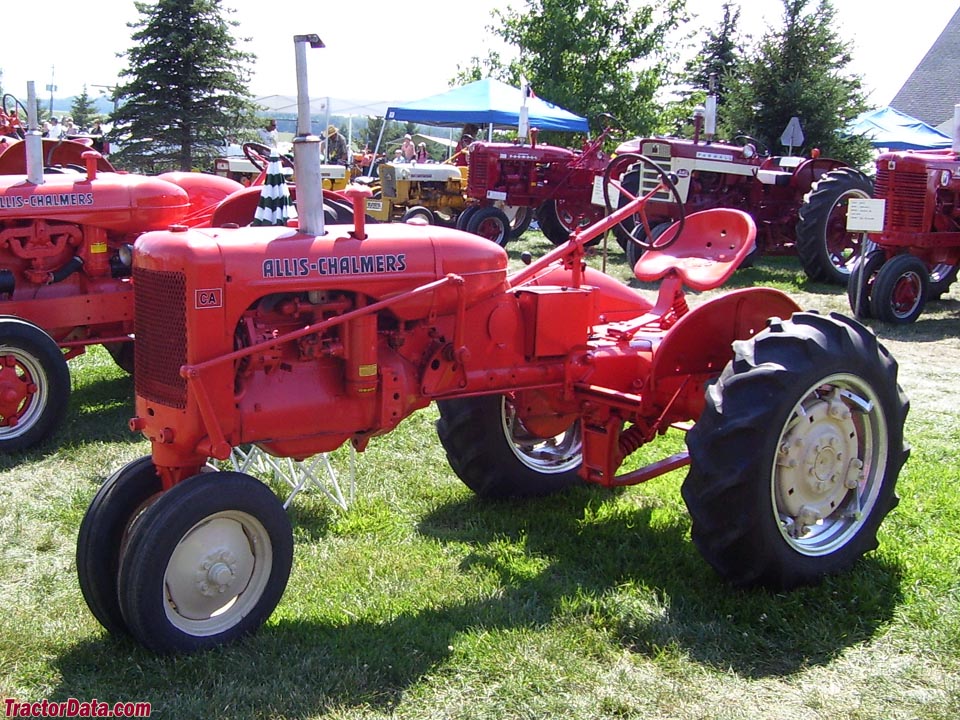

    Allis Chalmers CA tractor photo  I&T Manual: Allis-Chalmers B, C, CA, G, RC, WC, WD, WD45, WF
    I&T Shop Manual
    1950 - 1958
    Row-Crop tractor
    Previous model:Allis Chalmers C





    The live PTO on the CA was due to a hand clutch that "broke" the right side of the rear axle, causing the differental to spin freely.


    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:39,499
    Original price (USD):$1,900 (1958)


    Allis Chalmers CA Engine:

       Allis Chalmers 2.1L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:13 gal [49.2 L]
    Hydraulic system:2 gal [7.6 L]


    Rear Hitch:

    Type:Allis Snap Coupler (after 1954)


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:538


    Dimensions & Tires:

    Wheelbase:82 inches [208 cm]
    Weight:2835 to 5045 pounds
    Front tire:5.00-15
    Rear tire:10-24
    full dimensions and tires ...


    CA Serial Numbers:

    Location:On top of transmission, by shift lever
    1950: 14
    1951: 322
    1952: 10539
    1953: 22181
    1954: 31424
    1955: 32907
    1956: 37203
    1957: 38618
    1958: 38977

    how to read serial numbers...



    Allis Chalmers CA Power:

    Drawbar (claimed):18 hp [13.4 kW]
    PTO (claimed):23 hp [17.2 kW]
    Drawbar (tested):22.97 hp [17.1 kW]
    Belt (tested):25.96 hp [19.4 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical contracting band
    Cab:Open operator station


    Hydraulics:

    Capacity:2 gal [7.6 L]
    Pressure:3200 psi [220.6 bar]


    Belt Pulley:

    Diameter:8 inches [20 cm]
    Width:5.5 inches [13 cm]
    RPMs:1220
    Speed:2555 ft/min [778.76 meters/min]


    Electrical:

    Ground:positive
    Charging system:generator
    Charging amps:10


    Battery:

    Number:1
    Volts:6
    Amp-hours:95
