Tractors > Allis Chalmers > C

Allis Chalmers C Tests



Allis Chalmers C tractor photo
1940 - 1949
Row-Crop tractor
Series map:
C
21.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 363: distillate 3-speed 2WD
NTTL 364: gasoline 3-speed 2WD
Nebraska Tractor Test 363

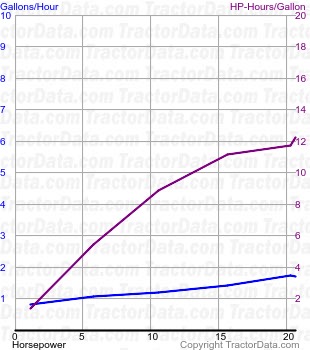

C fuel use from test 363
Nebraska Tractor Test 363
Distillate 3-speed 2WD
October 28 - November 6, 1940
Link: Nebraska Tractor Test 363 file
PTO performance
Power at rated engine speed19.40 hp
14.5 kW
Fuel use1.6 gal/hour
6.1 l/hour
Drawbar performance
Max power15.96 hp
11.9 kW
Gear 2 used for power test.
Max pull2,368 lbs
1074 kg
Gear 1 used for pull test.
Nebraska Tractor Test 364
C fuel use from test 364
Nebraska Tractor Test 364
Gasoline 3-speed 2WD
October 28 - November 7, 1940
Link: Nebraska Tractor Test 364 file
PTO performance
Power at rated engine speed23.30 hp
17.4 kW
Fuel use2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power18.4 hp
13.7 kW
Gear 2 used for power test.
Max pull2,352 lbs
1066 kg
Gear 1 used for pull test.
