Tractors > International Harvester > 2514B backhoe-loader

International Harvester 2514B

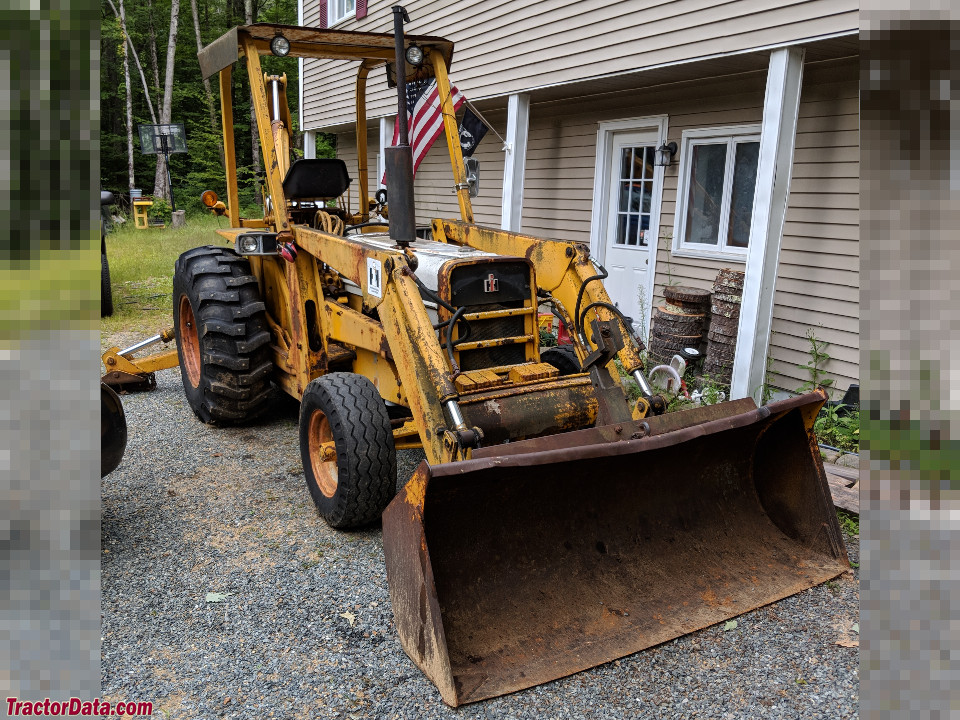

International Harvester 2514B backhoe photo
1974 - 1977
Backhoe loader tractor






Production:

Manufacturer:International Harvester
Factory:Louisville, Kentucky, USA


Variants:

2500B:utility tractor
2505B:utility loader
2510B:Pay loader
2514B:loader-backhoe


International Harvester 2514B Engines:

   International Harvester 3.9L 4-cyl diesel
   International Harvester 3.3L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:20 gal [75.7 L]


Dimensions & Tires:

Wheelbase:84 inches [213 cm]
Weight:10602 to 10865 pounds
Front tire:7.50-16
Rear tire:14.9-24
full dimensions and tires ...


Backhoe & Loader:

Dig depth:174 inches [441 cm]
Dump angle:51 inches [129 cm]
full backhoe/loader specifications ...


2514B Serial Numbers:


how to read serial numbers...



International Harvester 2514B Power:

Engine (gross):80 hp [59.7 kW]
Engine (net):70 hp [52.2 kW]
Gas hydro Drawbar (claimed):39 hp [29.1 kW]
Gas gear Drawbar (claimed):45 hp [33.6 kW]
Diesel hydro Drawbar (claimed):42 hp [31.3 kW]
Diesel gear Drawbar (claimed):45 hp [33.6 kW]
Gas hydro PTO (claimed):50 hp [37.3 kW]
Gas gear PTO (claimed):52 hp [38.8 kW]
Diesel hydro PTO (claimed):53 hp [39.5 kW]
Diesel gear PTO (claimed):52 hp [38.8 kW]


Mechanical:

Chassis:4x2 2WD
Steering:power
Brakes:independent hydraulic wet disc
Cab:Open operator station. Four-post ROPS available.


Hydraulics:

Type:open center
Pressure:2250 psi [155.1 bar]
Pump flow:12 gpm [45.4 lpm] (main)
 4 gpm [15.1 lpm] (transmission pump)
 18 gpm [68.1 lpm] (loader pump)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:37


Battery:

Volts:12
