Tractors > Allis Chalmers > 715C backhoe-loader

Allis Chalmers 715C Engine



Allis Chalmers 715C tractor photo
1982 - 1984
700C Series
Backhoe loader tractor
Series map:
714C
715C
65.0hp
65.0hp
Engine Detail
Allis-Chalmers 433T
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement200 ci
3.3 L
Bore/Stroke3.875x4.25 inches
98 x 108 mm
Power65 hp
48.5 kW
Fuel systemdirect injection
Compression14.1:1
Rated RPM2300
Idle RPM775-2580
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity16 qts
15.1 L
Engine Oil

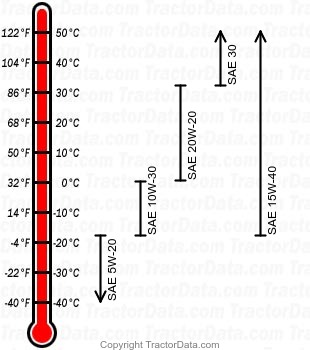

715C diesel engine oil chart
Oil capacity12 qts
11.4 L
Oil change100 h
