Tractors > Ford > 555A backhoe-loader

Ford 555A

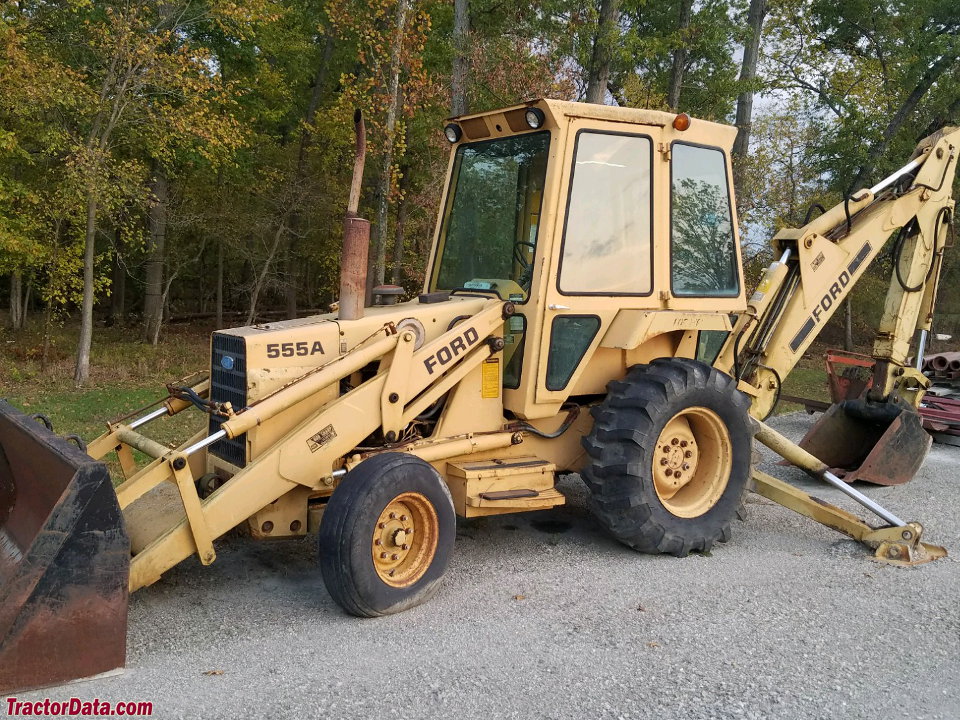

Ford 555A backhoe photo
1984 - 1985
Backhoe loader tractor
Previous model:Ford 555
Next model:Ford 555B






Production:

Manufacturer:Ford


Variants:

555A:14-foot backhoe
555A XL:15-foot backhoe


Ford 555A Engine:

   Ford 3.3L 3-cyl diesel
full engine details ...


Capacity:

Fuel:24 gal [90.8 L]
Hydraulic system:13 gal [49.2 L] (loader)
 21 gal [79.5 L] (loader-backhoe)
Steering:2 qts [1.9 L]


Dimensions & Tires:

Wheelbase:80 inches [203 cm]
Weight:12109 to 14968 pounds
Front tire:11L-16
Rear tire:16.9-24
full dimensions and tires ...


Backhoe & Loader:

Dig depth:173 inches [439 cm]
Dump angle:55 inches [139 cm]
full backhoe/loader specifications ...


555A Serial Numbers:


- Serial numbers unknown -



Ford 555A Power:

Engine (gross):63 hp [47.0 kW]
Engine:62 hp [46.2 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:differential mechanical wet disc
Cab:Four-post ROPS canopy. Optional noise-reduction package provided lined ROPS canopy and lined hood. Optional cab with heater, air-conditioning optional.


Hydraulics:

Type:open center
Capacity:13 gal [49.2 L] (loader)
 21 gal [79.5 L] (loader-backhoe)
Pressure:2400 psi [165.5 bar]
Total flow:28.5 gpm [107.9 lpm]
Steering flow:5.9 gpm [22.3 lpm]
Steering cap.:2 qts [1.9 L]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:32
 51 (optional)
 72 (cab optional)


Battery:

Number:1
Cold-cranking amps:750
Volts:12
Amp-hours:128
