Ford 555A Transmission

Ford 555A backhoe photo
1984 - 1985
Backhoe loader tractor
Transmissions overview
4-speed Power-reversing with torque converter
6-speed manual reversing
TypePower-reversing with torque converter
Gears4 forward and reverse
Oil capacity19 qts
18.0 L
Torque converter on the Ford 555A has a 2.78:1 multiplication ratio and a 2,050 rpm stall speed.
With 16.9x24 rear tires.
555A  Power-reversing with torque converter speeds
Typemanual reversing
Gears6 forward and 4 reverse
Oil capacity12.7 qts
12.0 L
Three forward and two reverse speeds in two ranges.
With 16.9x24 rear tires.

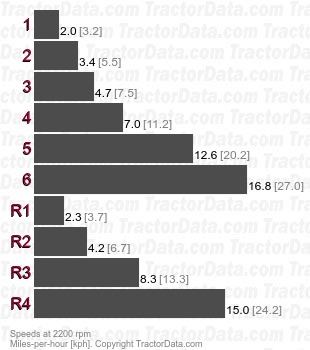

555A  manual reversing speeds
