| Engine options |
| 45HP JLO 592cc 2-cyl gasoline |
| Hirtth 634cc 2-cyl gasoline |
| Engine Detail |

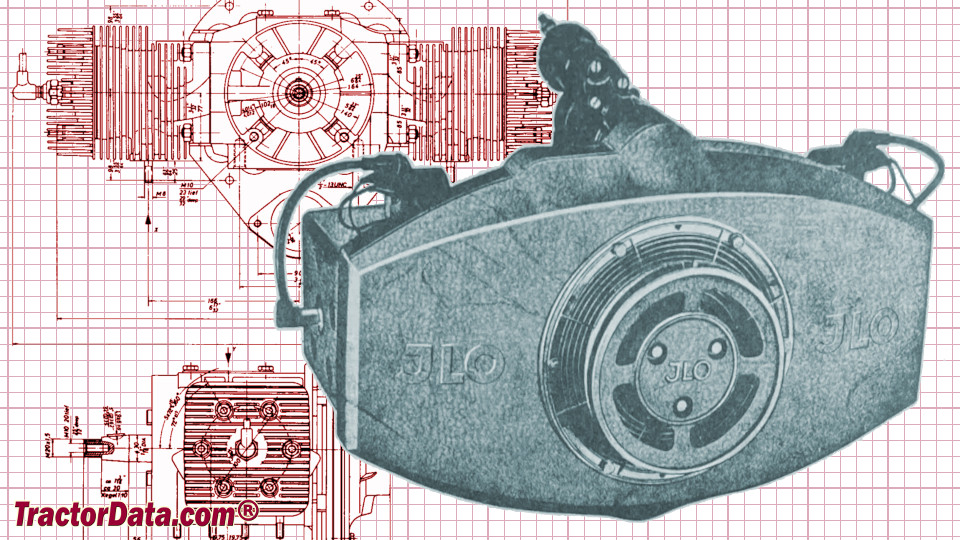

| JLO LB600/2 |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft opposed-twin |
| Displacement | 592 cc
36.13 ci
|
| Bore/Stroke | 2.953x2.368 inches
75 x 60 mm
|
| Power | 45 hp
33.6 kW
|
| Fuel system | dual Tillotson HD carburetors
|
| AMF Ski-Daddler Super Twin Engine |
 |
| Engine Detail |
| Hirtth 171 R |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft inline |
| Displacement | 634 cc
38.69 ci
|
| Bore/Stroke | 3.03x2.68 inches
77 x 68 mm
|
